2J4H86PGFg 5G, Wi-Fi 6E/7, GNSS adhesive mount Antenna 8-in-1 SMA-M/RPSMA-M 300cm IP67/IP69

This ultra-compact 8-in-1 antenna delivers high-performance connectivity for 5G, Wi-Fi 6E/7, and GNSS applications. Its low-profile, adhesive mount design is 55% smaller than comparable solutions, making it ideal for installations where space is limited. The antenna supports ultra-wideband MIMO operation, ensuring reliable signal strength and coverage across cellular, Wi-Fi, and navigation bands. Designed for demanding environments, it is suitable for public safety, transportation, automotive, industrial, and commercial applications. The robust housing provides IP67/IP69 protection and is available in black or white.

Connections

4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
3× 2.4-5.0-6.0GHz MIMO/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

• Connector Type: SMA-Male (5GNR & GNSS), RPSMA-Male (Wi-Fi 6E/7 ISM)
• Cable Length: 300cm
• Cable Type: D302 (5GNR/Wi-Fi 6E/7 ISM), LL100 (GNSS)

Installation / Environmental

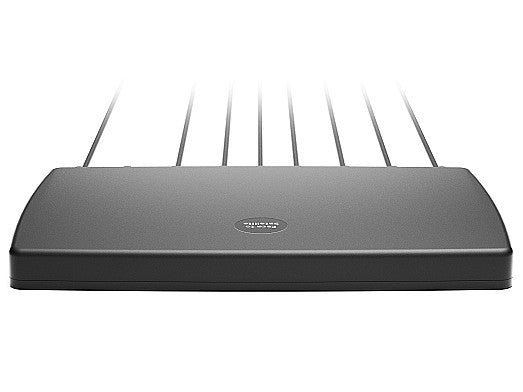

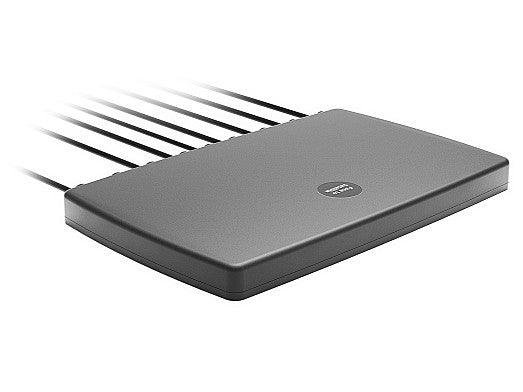

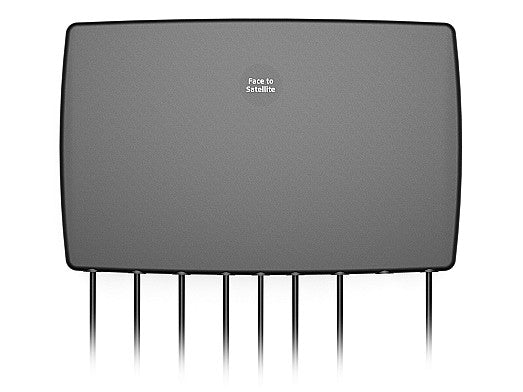

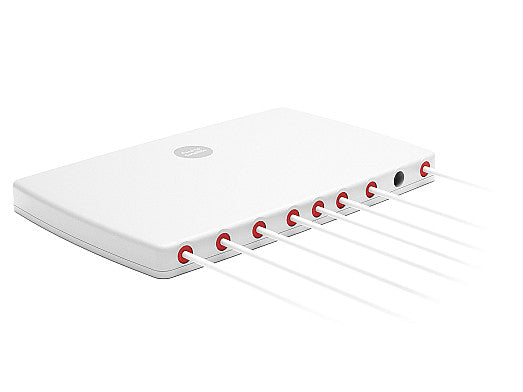

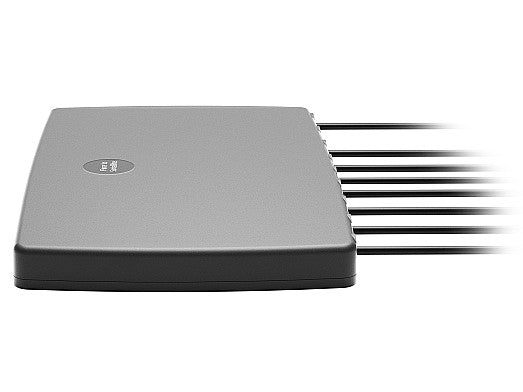

This ground plane independent antenna can be installed with an easy peel-and-stick adhesive to mount on any type of non-metallic surface making it ideal for temporary installations. We also offer this antenna with magnetic mount and screw mount, please see product 2J4H86MCFf and 2J6B86BCFf for more details. The low-profile housing measures only 198 x 127 x 15.7 mm making this antenna 55% smaller than any other antenna on the market. Manufactured with ASA UV stable material and full IP67/IP69 rating offer durability and the highest level of protection against water and moisture. This antenna is available in black or white color.

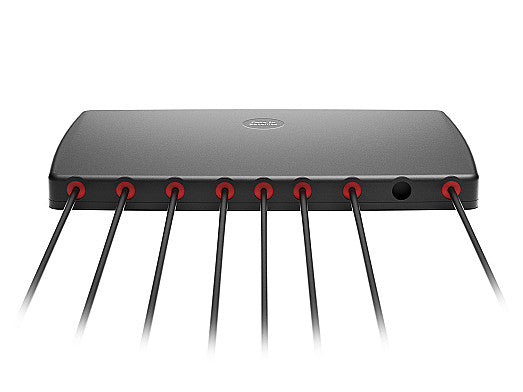

2J4H86PGFg connections are standard SMA-Male (5GNR & GNSS)/ SMA-Male-RP (Wi-Fi 6E / Wi-Fi 7 ISM) and come with 300cm long D302 (5GNR/Wi-Fi 6E / Wi-Fi 7 ISM)/ LL100 (GNSS) cables. All the cables feed from one side of the antenna housing and are tuned for optimal performance. We offer a wide range of alternative connectors and cables to meet any customization needs. Please contact our highly skilled engineers for assistance in antenna selection or customization requirements.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT, SigFox, LoRa
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-13.2 to ~-16.8
VSWR: ~1.5:1 to ~1.8:1
Efficiency (%): ~44 to ~57
Peak Gain (dBi): ~0.9 to ~4.5
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 2 - 2.4/5.0/6.0 GHz Tri-Band Wi-Fi 6E / Wi-Fi 7

Standards: Wi-Fi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.3:1 to ~1.9:1
Efficiency (%): ~20.2 to ~47.2
Peak Gain (dBi): ~2.3 to ~6.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 3 - GNSS (GPS/GLONASS/Galileo/QZSS)

Standards: GPS, GLONASS, QZSS, Galileo
Frequency: 1575.42, 1598-1606 MHz
Passive Gain (dBi): ~4.5, ~5.0
Active Gain (dB): 28 @ 2.7 V
Noise Figure (dB): 1.8 @ 2.7 V
Current Consumption (mA): 9 @ 2.7 V
Power Consumption (mW): 24.3 @ 2.7 V
Saw Filter Type: Pre-Filter
Out of Band Rejection (dB): 43
ESD Protection (kV): 6
Impedance (Ohm): 50
Radiation Pattern: Hemispherical
