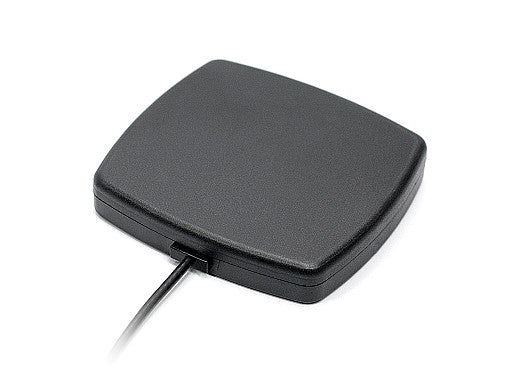

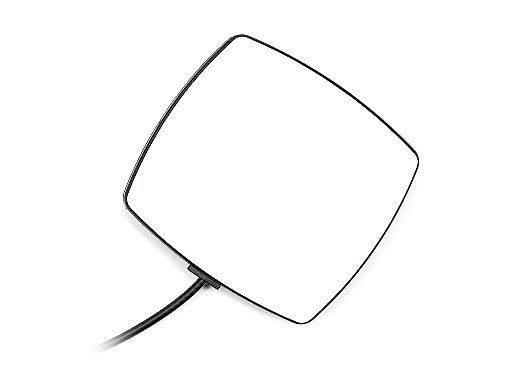

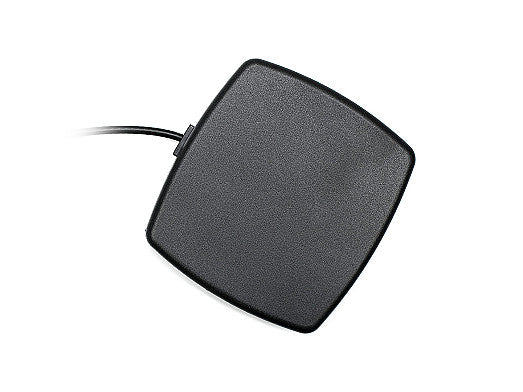

2J6024M 4G/LTE magnetic mount Antenna

This low-profile antenna is designed for reliable 4G LTE, 3G, and 2G connectivity across a wide range of applications. Its compact and sleek form factor makes it ideal for installations where space is limited, while the magnetic mount allows for quick and easy attachment to metal surfaces. The antenna is ground plane independent and supports a wide frequency range, making it suitable for use in mobile networks, IoT devices, asset tracking, automotive, and industrial environments.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Magnetic Mount
Location: External
Type: Single

Connection 1 - CELLULAR/4G LTE

Standards: 2G, 3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.2:1, ~2.6:1, ~2.1:1
Efficiency (%): ~25.3, ~20.2, ~36.1
Peak Gain (dBi): ~-0.7, ~1.7, ~4.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
