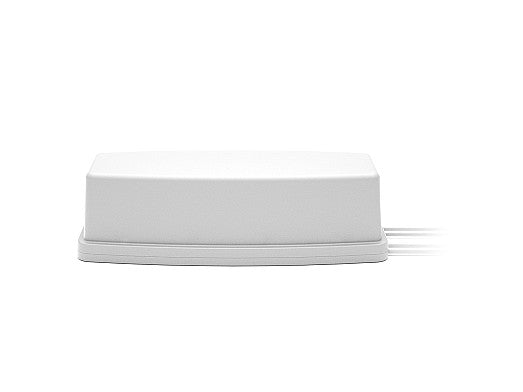

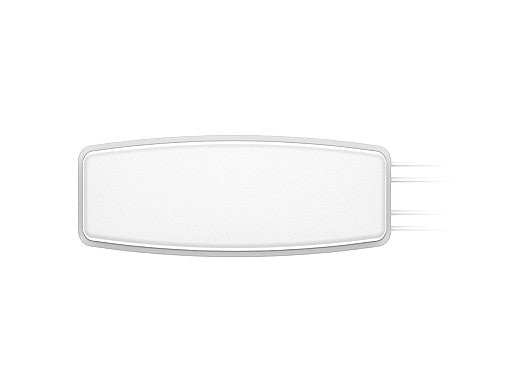

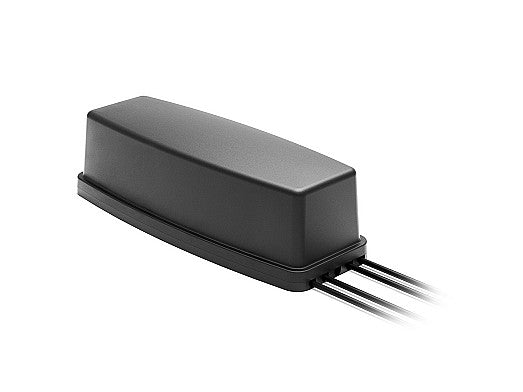

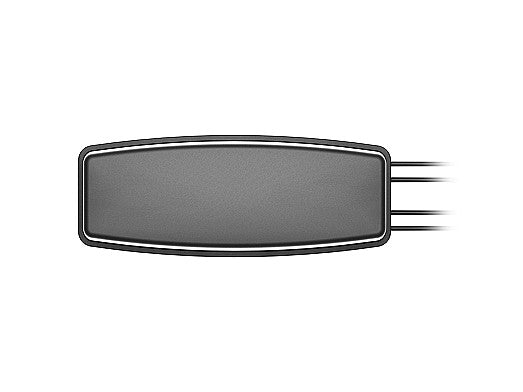

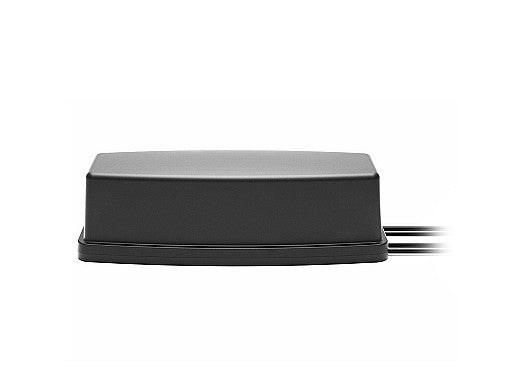

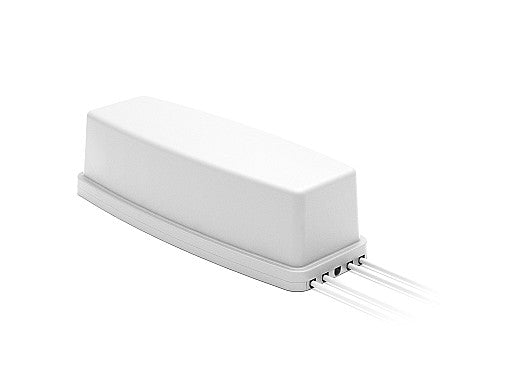

2J6C02Mc Wi-Fi 6E/7, ISM magnetic mount Antenna 4-in-1 Bullion LL195 300cm IP67/IP69

Experience next-generation wireless connectivity with this high-performance 4-in-1 MIMO antenna, designed for Wi-Fi 6E/7, Bluetooth, ZigBee, ISM, SigFox, and LoRa applications. Its advanced MIMO configuration ensures high data throughput, reduced interference, and reliable performance, making it ideal for high-density networks, IoT deployments, VR/AR, video streaming, outdoor installations, public hotspots, and smart transportation systems. The antenna is ground plane independent and built with durable, UV-stable ASA material for long-lasting use in demanding environments.

Connections

4× 2.4-5.0-6.0GHz MIMO/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

• Connector Type: Customizable (standard: not explicitly specified)
• Cable Length: 300cm
• Cable Type: LL195

Installation / Environmental

The 2J6C02Mc is fully IP67/IP69 rated and manufactured with a lightweight ASA UV stable material that provides durability against moisture without any compromise to performance. This ground plane independent antenna measures only 193 x 76.5 x 56.1 mm and with magnetic mounting making it ideal for permanent or temporary installations on any surface. Please see 2J6C02Bb for the 3-in-1 screw mounting antenna option or the 2J6C02Mb for the 3-in-1 magnetic option.

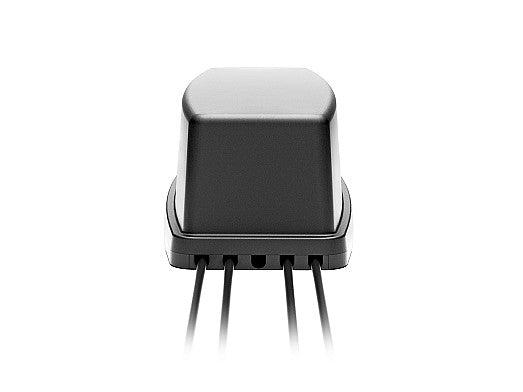

Cables 1-4 are low loss LL195 that measure 300 cm in length and feed through the magnetic mount connection located at the antenna base. The standard cables are tuned for optimal performance, but we also offer a wide range of alternative connectors and cables for any customization needs.
All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Location: External
Mounting: Magnetic Mount
Type: Combination

Connection 1 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.6:1, ~1.3:1, ~1.4:1
Efficiency (%): ~63.7, ~61.3, ~48.1
Peak Gain (dBi): ~5.9, ~6.3, ~6.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.5:1, ~1.4:1, ~1.6:1
Efficiency (%): ~63.2, ~62.1, ~48.7
Peak Gain (dBi): ~4.8, ~6.3, ~6.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 3 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.6:1, ~1.9:1, ~1.6:1
Efficiency (%): ~61.8, ~52.0, ~52.1
Peak Gain (dBi): ~4.4, ~6.3, ~7.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 4 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.9:1, ~1.7:1, ~1.6:1
Efficiency (%): ~62.4, ~55.0, ~45.0
Peak Gain (dBi): ~4.3, ~6.3, ~5.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
