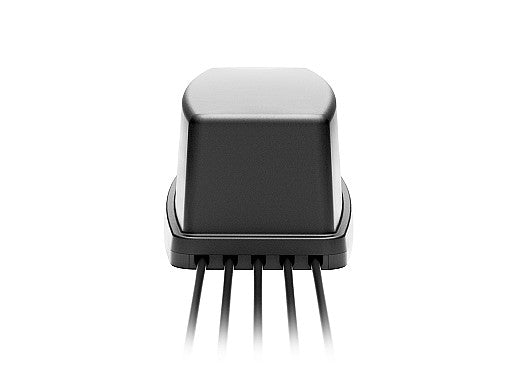

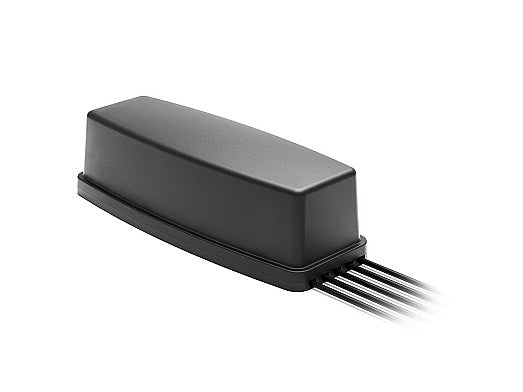

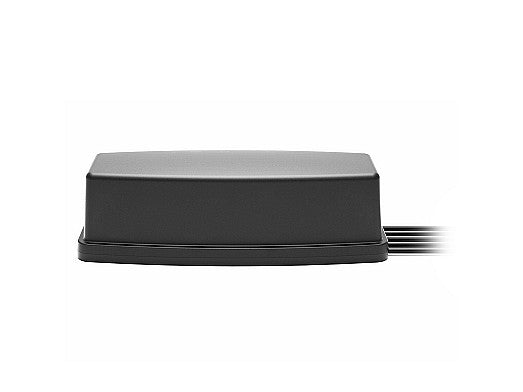

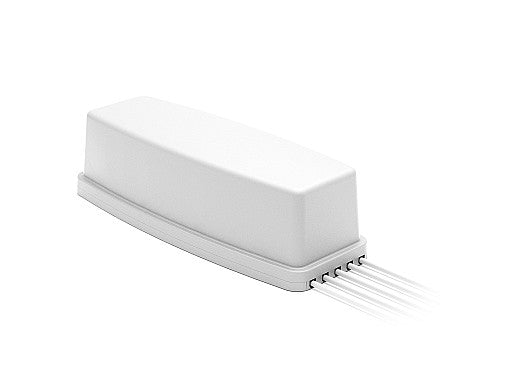

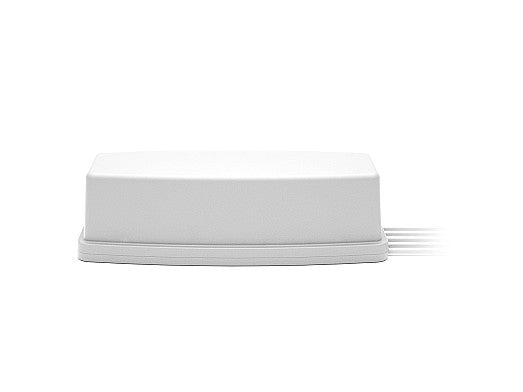

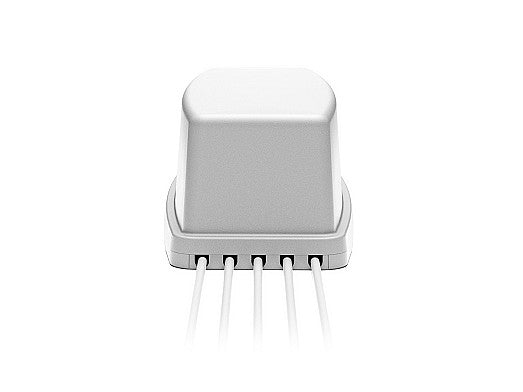

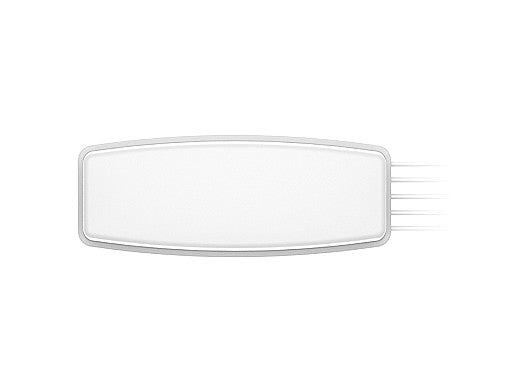

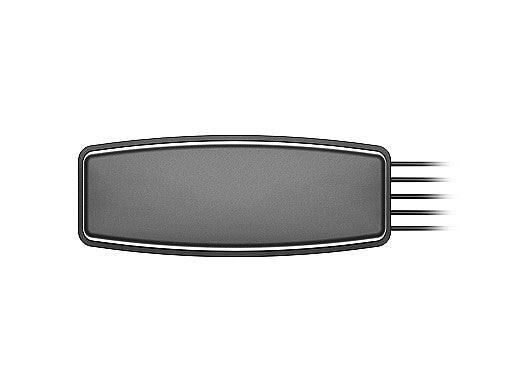

2J6C86MGFa 5G, GNSS, Wi-Fi 6E/7, ISM magnetic mount Antenna 5-in-1 SMA-M 300cm IP67/IP69

This ultra wide-band, high-performance, and lightweight 5-in-1 antenna is designed for demanding applications such as law enforcement, transportation, and fleet management. Its low-profile, compact form factor allows for seamless installation on vehicle roofs, especially between SUV roof ridges, making it ideal for temporary or permanent deployments. The Bullion Series offers versatile mounting options and is a popular no-drill solution for automotive OEMs and aftermarket distributors. Key use cases include wireless broadband, private networking, cellular/mobile data and voice, base stations, routers, critical communications, precision navigation, tracking, industrial machinery, automotive, telematics, and utilities.

• 5-in-1 combination for cellular, Wi-Fi 6E/7, and GNSS connectivity
• Ultra wide-band coverage for 5G, 4G/LTE, 3G, and 2G
• High gain and efficiency for reliable signal strength
• Active GNSS with pre-filter and ESD protection
• Ground plane independent and IP67/IP69 rated for outdoor durability

Connections

2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
2× 2.4-5.0-6.0GHz MIMO/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: LL195 (Cables 1-4), LL100 (Cable 5)

Installation / Environmental

The superior stacked neodymium magnetic mount offers heavy duty magnetic strength and allows for quick on-and-off installations on any metal surfaces such as vehicles, metal buildings and steel towers. (See product 2J6C868BGFa for screw mount option). The fully IP67/IP69 rated lightweight is manufactured with ASA UV stable material that provides protection against water and moisture while maintaining optimal operation in outdoor applications. This ground plane independent antenna measures only 193 x 76.3 x 56.5 mm and is ideal for temporary SUV roof installations with a perfect fit in the vehicle roof indentations.
Cables 1-4 are low loss LL195 cables and cable 5 is LL100 that measure 300 cm in length and feed through the shortest side of the antenna housing ending with SMA-Male connectors for a secure connection. The standard cables are tuned for optimal performance, but we also offer a wide range of alternative connectors and cables for any customization needs. All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT, SigFox, LoRa
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-10.4, ~-13.4, ~-14.1, ~-6.8
VSWR: ~2.1:1, ~1.7:1, ~1.7:1, ~2.8:1
Efficiency (%): ~45.0, ~58.2, ~53.1, ~39.9
Peak Gain (dBi): ~3.6, ~5.1, ~5.2, ~2.7
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-12.6, ~-13.8, ~-13.9, ~-8.6
VSWR: ~1.7:1, ~1.7:1, ~1.6:1, ~2.3:1
Efficiency (%): ~59.7, ~53.9, ~57.2, ~36.9
Peak Gain (dBi): ~4.6, ~5.1, ~5.4, ~4.8
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 3 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.6:1, ~1.7:1, ~1.8:1
Efficiency (%): ~59.0, ~44.8, ~41.7
Peak Gain (dBi): ~4.5, ~5.9, ~5.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 4 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.6:1, ~1.9:1, ~1.8:1
Efficiency (%): ~60.5, ~42.9, ~41.8
Peak Gain (dBi): ~5.1, ~6.4, ~6.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 5 - GPS/GLONASS

Standards: GPS/GLONASS/QZSS/Galileo
Frequency: 1575.42, 1598-1610 MHz
VSWR: <=1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Radiation Pattern: Hemispherical
Voltage Range (V): 1.5 - 3.6
Active Gain (dB): 28 @ 2.7 V
Noise Figure (dB): 1.8 @ 2.7 V
Current Consumption (mA): 9 @ 2.7 V
Saw Filter Type: Pre-Filter
Out of Band Rejection (dB): 43
ESD Protection (kV): 2
