2J7068BGFa-915 4G/LTE, GNSS, Wi-Fi, ISM screw mount Antenna Medusa 5-in-1 SMA-M 300cm IP67/IP69

This heavy-duty, high-performance antenna delivers reliable 4G/LTE MIMO, GNSS, Wi-Fi, and ISM connectivity in a single, compact solution. Its 5-in-1 design ensures superior signal strength and uninterrupted performance for a wide range of applications, including smart cities, industrial automation, telematics, and navigation. The robust dome housing is UV-stable and impact-resistant, making it ideal for demanding outdoor environments. The antenna is suitable for use in transportation, security, asset tracking, and IoT deployments, providing versatile connectivity for both rural and urban installations.

Connections

2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1
2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM
915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: LMR195 (Cellular/ISM/Wi-Fi/915 MHz), LMR100 (GNSS)

Installation / Environmental

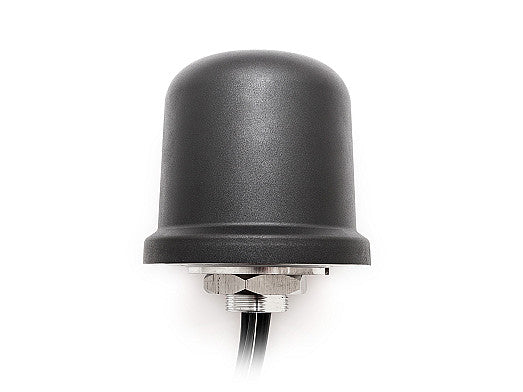

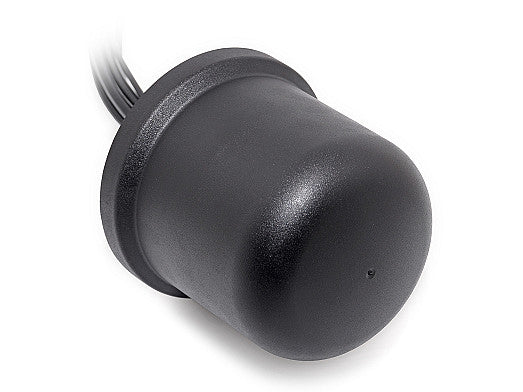

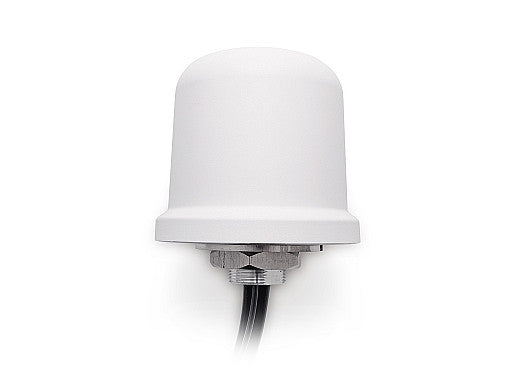

This heavy-duty antenna comes with an aesthetically designed dome shape housing measuring only Ø 96 x H 90 mm and is manufactured with high grade ASA UV stable material that is available in black or white. Fully IP67, IP69 and IK09 certified makes this antenna waterproof, resistant to impact and withstand high temperature / pressure water ideal for any type of environmental exposure.

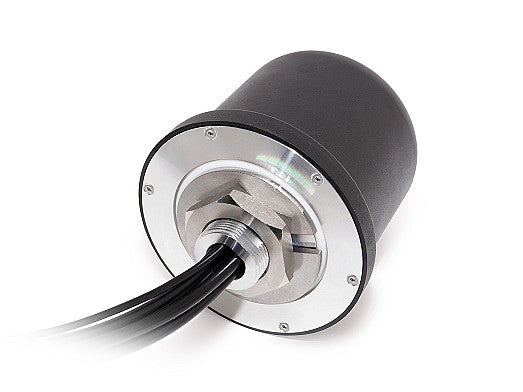

All five cables feed through the screw mount located at the bottom of the aluminum alloy antenna base. Designed with an anti-rotation mechanism which allows for secure installation on any external surface without the need for grounding or free space.

Our standard antenna package includes SMA-male connectors with 300cm long LMR195 low loss cables for the Cellular/ISM, WiFi, 915 MHz and LMR100 for the GNSS connection. We offer a large range of alternative connectors and cables for any customization needs. Our highly skilled engineers are available 24/7 to assist our customers with antenna selection to ensure optimal performance for the application.

All our products are designed with the environment in mind and manufactured without hazardous materials with full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT, Cat-X, Cat-Mx, Cat-NBx, SigFox, LoRa
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee
Type: Combination

Connection 1 - Cellular/4G LTE (MIMO)

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.9:1, ~1.9:1, ~1.3:1
Efficiency (%): ~36, ~41, ~53
Peak Gain (dBi): ~0.2, ~3.8, ~6.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - Cellular/4G LTE (MIMO)

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.8:1, ~2.1:1, ~1.4:1
Efficiency (%): ~35, ~42, ~53
Peak Gain (dBi): ~-0.1, ~3.2, ~5.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 3 - 2.4/5.0 GHz ISM

Standards: Wi-Fi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.9:1, ~1.6:1
Efficiency (%): ~58, ~64
Peak Gain (dBi): ~5.6, ~5.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 4 - 915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 902-928 MHz
VSWR: ~2.3:1
Efficiency (%): ~36
Peak Gain (dBi): ~0.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 5 - GNSS (GPS/GLONASS)

Standards: GPS, QZSS, Galileo, GLONASS
Frequency: 1575.42, 1598-1610 MHz
VSWR: ≤1.5:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 23 @ 3 V, 24 @ 5 V
Saw Filter Type: Post-Filter
Voltage (V): 2.7 - 5.5
Noise Figure (dB): 1.2
Current Consumption (mA): 15 - 25
Power Consumption (mW): 40.5 - 137.5
Out of Band Rejection (dB): 32
