2J7C01MC2F GNSS magnetic mount Antenna SMA-M 300cm

This high-precision magnetic mount antenna is engineered for centimeter-level accuracy, making it ideal for advanced GPS applications. It supports all major GNSS bands, including GPS, GLONASS, BeiDou, QZSS, Galileo, and SBAS, and operates efficiently across L1 and L2 frequencies. The antenna is designed for both receiving and transmitting, with active gain and low noise for reliable performance in demanding environments. Its robust, low-profile dome housing is waterproof and dust-resistant, suitable for harsh outdoor conditions. Typical use cases include land and hydrographic surveying, UAV navigation, autonomous vehicles, and civil aviation.

• Centimeter-level position accuracy with RTK and PPP support
• Multi-constellation GNSS coverage (GPS, GLONASS, BeiDou, QZSS, Galileo, SBAS)
• Low power consumption and high active gain
• Ground plane independent design
• Flexible magnetic mount for temporary or permanent installation

Connections

GPS/GLO/BEI/QZSS/Galileo/RTK/L1L2

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: LL100

Installation / Environmental

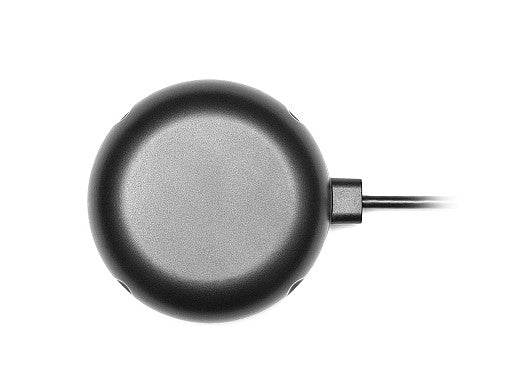

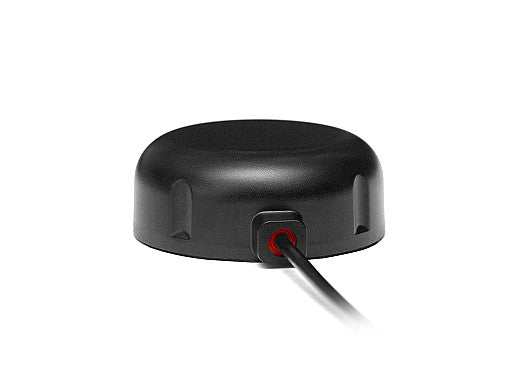

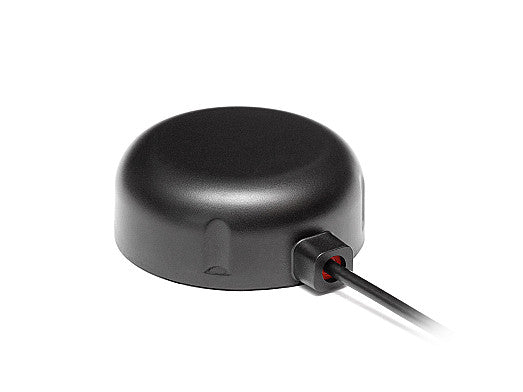

The antenna is enclosed within a dome-shape ASA UV stable housing (IP67/IP69 rated) that is waterproof, dust resistant and durable in extreme environments. A strong magnetic mount gives this antenna the flexibility for temporary or permanent installations. This antenna has a compact and low-profile form factor measuring only Ø 54 x 21.5 mm. Delivery includes a single standard SMA-Male connector and a 300 cm long LL100 cable. Custom cables and connectors are available upon request by contacting our expert team for any customization or antenna selection needs.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Location: External
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Type: Single

Connection 1 - GNSS (GPS/GLONASS/BeiDou/QZSS/Galileo/SBAS/RTK/L1L2)

Technologies: GPS/Glonass/Beidou/QZSS/Galileo/SBAS/RTK/L1L2
Bandwidth (MHz): 1227, 1561-1606
Bands: L2, L1
Frequency: 1227.6, 1561.098, 1575.42, 1602.00
Standards: GPS(L2C), QZSS(L2C), GPS(L1C), GLONASS(L1OF), BeiDou(B1), QZSS(L1C), Galileo(E1), SBAS (L1)
Return Loss (dB): ~-17.1, ~-16.2
VSWR: ~1.5:1, ~1.7:1
Passive Peak Gain (dBi): ~4.9, ~4.4
Impedance (Ohm): 50
Radiation Pattern: Hemispherical
Axial Ratio (dB): 3dB max
Polarisation: RHCP
Voltage (V): 1.5 - 6
Active Gain (dB): 28 @ 3 V
Noise Figure (dB): 1.6 @ 3V
Current Consumption (mA): 16 @ 3V
Power Consumption (mW): 48 @ 3V
Saw Filter Type: Pre-Filter
Out of Band Rejection (dB): ~40
ESD Protection (kV): 2
