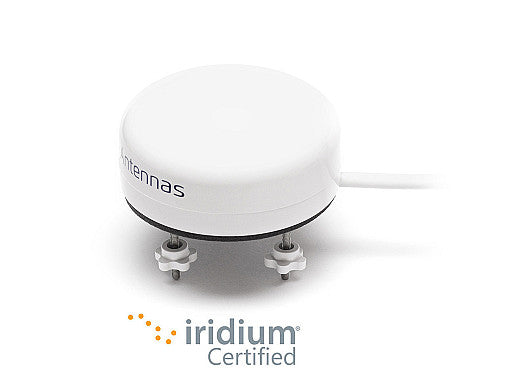

2J9126BW Iridium screw mount Antenna SMA-M 300cm IP67

This high-performance antenna is engineered for reliable Iridium satellite connectivity in marine and harsh outdoor environments. Its waterproof, UV-stable housing ensures long-lasting durability and consistent performance, even in extreme conditions. With a compact, low-profile design and ground plane independence, it is ideal for permanent installations on vessels, vehicles, or remote land-based sites where robust satellite voice and data communication is critical.

• Optimized for Iridium satellite network (1616–1627 MHz)
• High peak gain and efficiency for strong, stable signals
• IP67-rated waterproof and dustproof enclosure
• Suitable for marine, emergency, transportation, and industrial applications

Connections

IRIDIUM

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: LL195W

Installation / Environmental

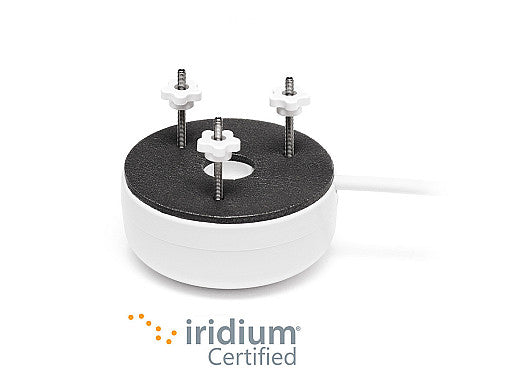

The IP67 waterproof antenna housing and base are manufactured with UV stable ABS material offering protection and resistance to dust, sand, particles, and water ingress making it an ideal solution for extreme environments with temperatures ranging between -40 C to +85 C. Designed with dimensions of Ø 74 × 34.7 mm and a low profile, this antenna can be permanently installed with three screw mounts securing the antenna to any free space without the need for grounding.
The 2J9126BW comes with a standard SMA-Male connector and a 300cm long LL195W cable designed for short cable runs while maintaining excellent performance. We offer a wide range of alternative connectors and cables for any customization needs to help our customers optimize marine application needs. Please contact us for any request or antenna selection needs.
All our products are designed with the environment in mind and manufactured without hazardous materials with full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Location: External
Type: Single

Connection 1 - IRIDIUM

Standards: IRIDIUM
Frequency: 1616-1627 MHz
Peak Gain (dBi): ~4.5
Efficiency (%): ~76
Impedance (Ohm): 50
Axial Ratio (dB): 3 max
Radiation Pattern: Hemispherical
Polarisation: RHCP
