2J9126JBW-B12JW-B10BW Iridium Antenna marine screw mount Configurable Mounting IP67

This high-performance marine antenna is engineered for reliable Iridium satellite communication in the harshest marine environments. Its ground plane independent design and hemispherical radiation pattern ensure optimal signal strength and coverage for global M2M/IoT voice and data connectivity. The antenna is built with a robust, waterproof ABS housing rated to IP67, making it ideal for permanent installation on commercial and leisure vessels, as well as for critical and emergency communications.

• Iridium certified for global satellite connectivity
• High efficiency and peak gain for superior performance

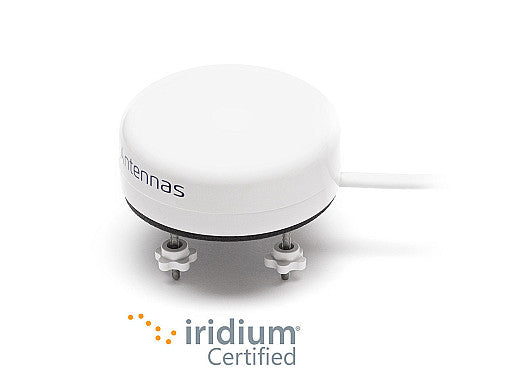

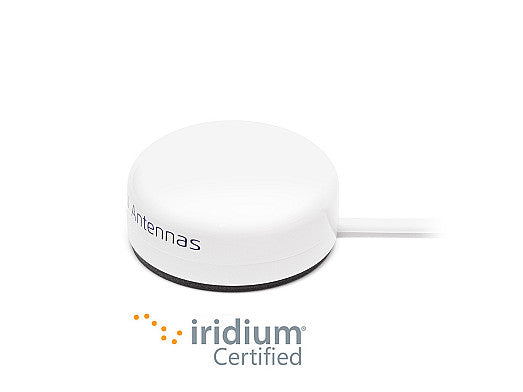

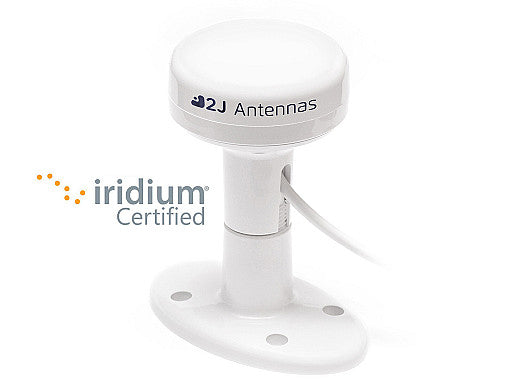

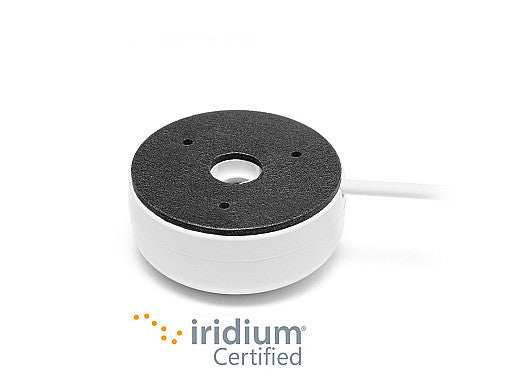

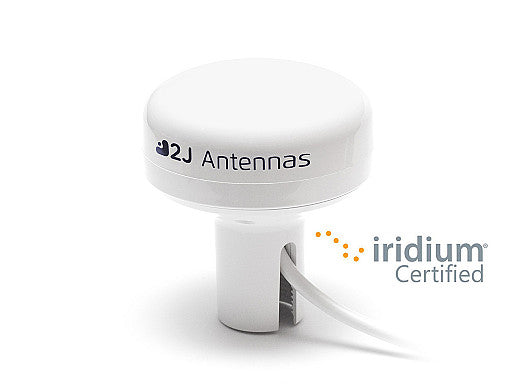

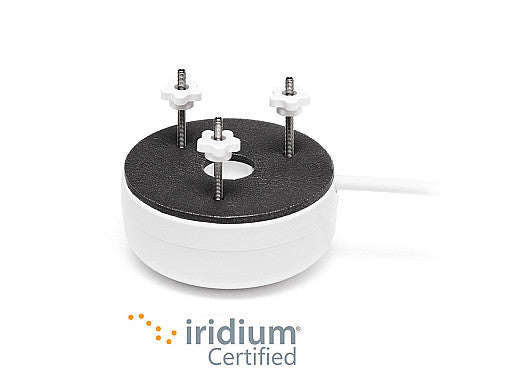

• Configurable mounting options: screw, adhesive, or pole mount
• Designed for marine, emergency, and remote applications
• Durable, weather-resistant construction for long-term reliability

Connections

IRIDIUM

Installation / Environmental

The antenna housing and base are manufactured with IP67 certified ABS, a waterproof material known for its resistance to impact, chemical, moisture and present high durability properties that allow reliable operations in temperatures ranging between -40C to +85C. Designed with a configurable mount and ground plane independence makes this antenna ideal for permanent marine installation in the most extreme outdoor applications without restrictions.

For this antenna there is a large selection of coaxial cables available upon request and our team of experts is available to assist in customization options by offering a wide range of options.

This antenna has been tested rigorously to assure absolute antenna function in the most extreme marine conditions to achieve 100% customer satisfaction. All products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount, Adhesive Mount, Pole Mount
Type: Single
Location: External

Connection 1 - IRIDIUM

Standards: IRIDIUM
Frequency: 1616-1627 MHz
VSWR: ~1.2:1
Efficiency (%): ~76
Passive Gain (dBiC): ~4.5
Impedance (Ohm): 50
Axial Ratio (dB): 3 max
Radiation Pattern: Hemispherical
Polarization: RHCP
