2J9134JBW-B12JW-B10BW GNSS, Iridium marine Antenna screw mount/adhesive mount/pole mount IP67

This high-performance marine antenna is designed for reliable satellite navigation and Iridium communication in demanding environments. Its ground plane independent design ensures consistent performance, while the compact form factor makes it suitable for space-constrained installations. The antenna is Iridium certified and offers configurable mounting options, including screw, adhesive, and pole mount, making it versatile for a wide range of marine and outdoor applications. With high efficiency and peak gain, it is ideal for use in navigation, asset tracking, emergency communications, and more.

Connections

GPS/QZSS/Galileo/L1-IRIDIUM

Technical Specifications

Operating Temperature: -40 °C to +85 °C

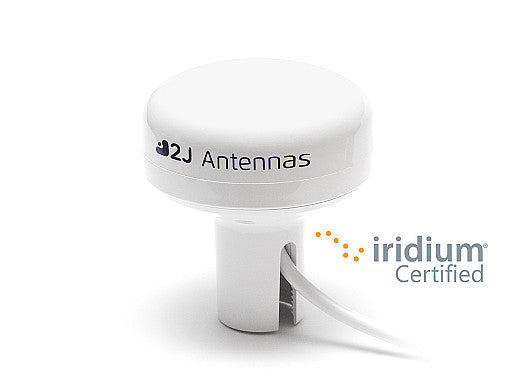

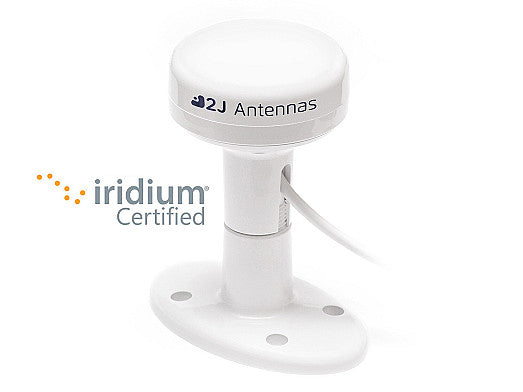

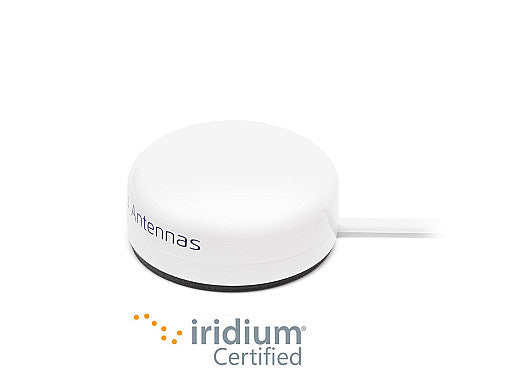

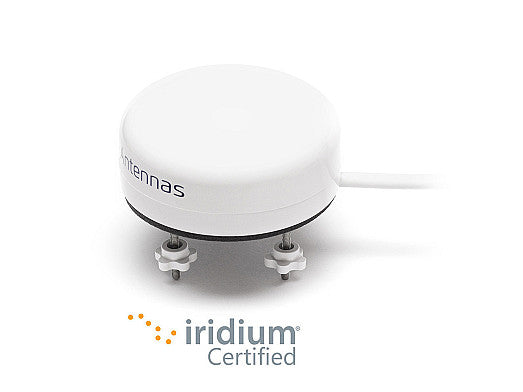

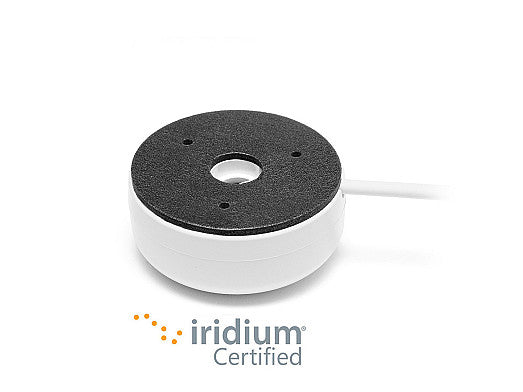

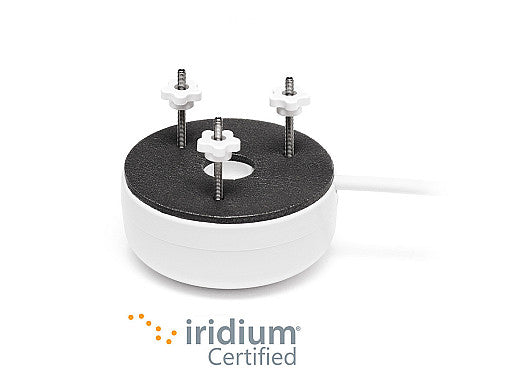

Mounting: Screw Mount, Adhesive Mount, Pole Mount
Type: Single
Location: External

Connection 1 - GPS-IRIDIUM

Standards: GPS/QZSS/Galileo-IRIDIUM
Frequency: 1575.42, 1616-1627 MHz
Peak Gain (dBi): ~5.1, ~5.7
Efficiency (%): ~93.8, ~92.9
Impedance (Ohm): 50
Axial Ratio (dB): 3 max
Radiation Pattern: Hemispherical
Polarisation: RHCP
