2J9C26JW-C392N Iridium pole mount Antenna TNC-F IP67

This high-performance marine antenna is designed for reliable Iridium satellite connectivity in demanding environments. With robust pole-to-pole coverage and high efficiency, it ensures continuous communication for marine, emergency, and remote applications. The dome-shaped, heavy-duty ABS housing is fully waterproof (IP67 rated), making it ideal for harsh marine conditions. Its hemispherical RHCP radiation pattern delivers strong signal strength on both horizontal and vertical planes, supporting critical communications even in remote ocean areas.

Connections

IRIDIUM

Connector & Cable

• Connector Type: TNC-Female

Installation / Environmental

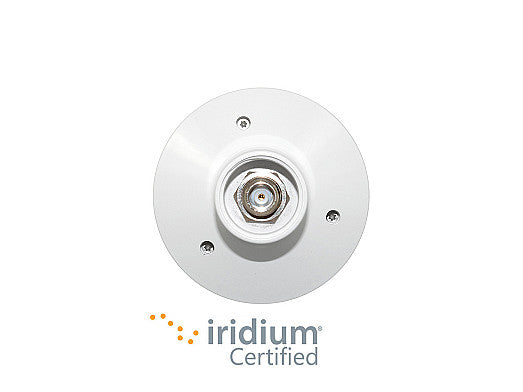

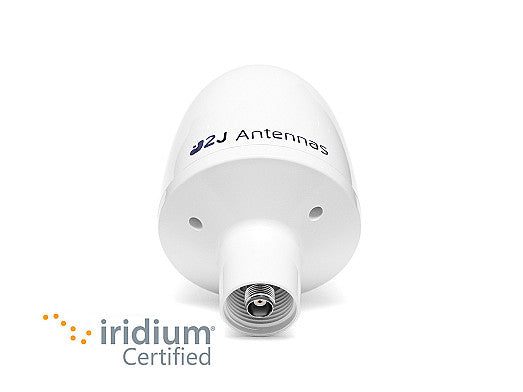

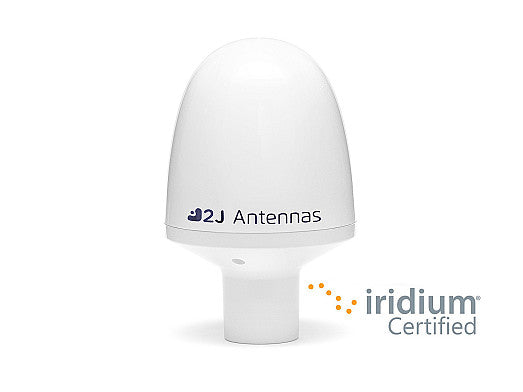

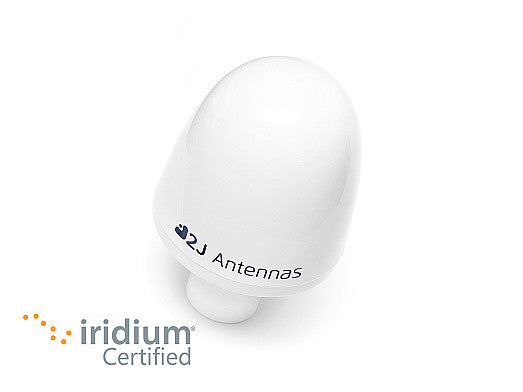

The antenna housing (Ø 74 × 116 mm) is manufactured with heavy duty ABS material and comes in an attractive white, dome shaped form factor specifically designed for marine applications. The fully waterproof (IP67 rated) housing is ideal for wet environments without compromise to performance under extreme conditions. Integrated with a TNC female connector and a UNF1-14 standard thread allows for simple installation to existing cables and does not require grounding or free space. UNF threads have a better torque-locking ability and are designed for heavier loads that are necessary for heavy duty applications.

It is important to match the right antenna with the job and expert engineers are available for any customization needs, installation needs and antenna selection support. All products are designed with the environment in mind and manufactured without hazardous materials with full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Pole Mount
Location: External
Type: Single

Connection 1 - IRIDIUM

Standards: IRIDIUM
Frequency: 1616-1627 MHz
VSWR: ~1.4:1
Efficiency (%): ~85.8
Passive Gain (dBiC): ~4.0
Impedance (Ohm): 50
Axial Ratio (dB): 3 max
Radiation Pattern: Hemispherical
Polarisation: RHCP
