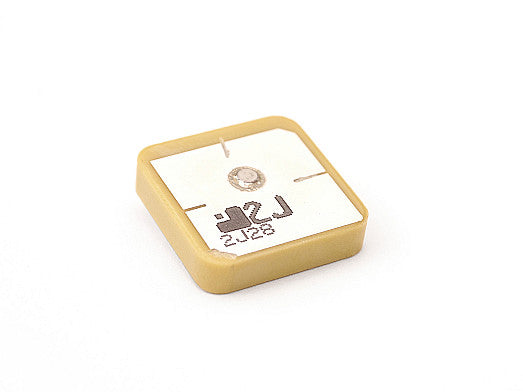

2JCP1840101a GNSS thru-hole mount ceramic Antenna

This high-gain embedded antenna is designed for reliable GNSS reception, supporting GPS, QZSS, and Galileo standards. Its ceramic construction and ground plane dependence make it ideal for integration into compact devices where precision and efficiency are critical. The antenna is well-suited for applications such as consumer electronics, robotics, drones, fleet management, smart cities, and more, offering robust performance in demanding environments.

Connections

GPS/QZSS/Galileo/L1

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Thru-Hole Mount Ceramic
Location: Internal
Satellite Navigation: GNSS
Type: Single

Connection 1 - GNSS

Standards: GPS/QZSS/Galileo
Frequency: 1575.42 MHz
Passive Gain (dBi): ~3.6
Efficiency (%): ~65
Radiation Pattern: Hemispherical
Axial Ratio (dB): 3 max
Polarization: RHCP

Download Datasheet PDF
