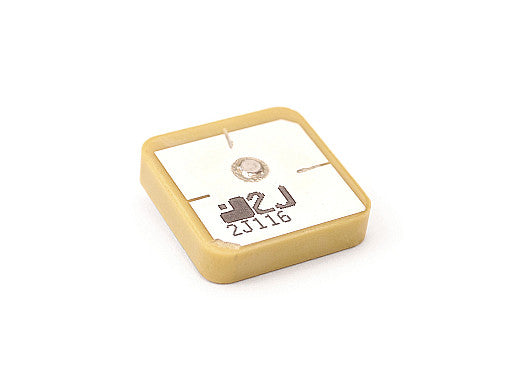

2JCP1840101Ca GNSS ceramic passive Antenna thru-hole mount

This high-gain ceramic passive antenna is designed for reliable GNSS signal reception, supporting GPS, GLONASS, BeiDou, QZSS, and Galileo systems. Its compact form factor and thru-hole mount make it ideal for embedded applications where space is limited. The antenna is ground plane dependent, ensuring optimal performance when integrated into device designs. Typical use cases include consumer electronics, robotics, drones, fleet management, smart cities, and asset tracking, among many others.

Connections

GPS/GLO/BEI/QZSS/Galileo/L1

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Thru-Hole Mount Ceramic
Location: Internal
Satellite Navigation: GNSS
Type: Single

Connection 1 - GNSS

Standards: GPS/GLONASS/BeiDou/QZSS/Galileo
Frequency: 1561.098, 1575.42, 1598-1606 MHz
Passive Gain (dBi): ~5.2, ~5.4, ~5.4
Efficiency (%): ~65.6, ~61.4, ~68.7
Impedance (Ohm): 50
Radiation Pattern: Hemispherical
Polarization: RHCP

Download Datasheet PDF
