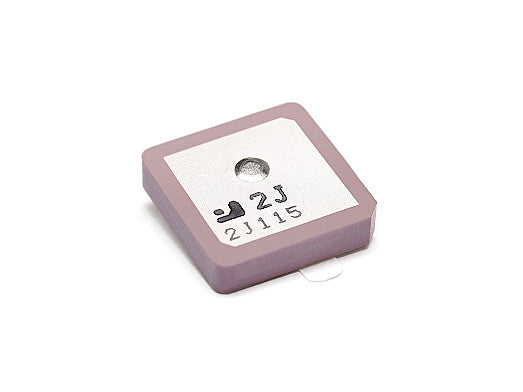

2JCP1841501c ISM Antenna thru-hole mount ceramic

This compact ceramic antenna is optimized for 868 MHz ISM applications, offering high gain and reliable performance in a small form factor. Designed for embedded use, it is ideal for integration into devices requiring efficient wireless communication, such as IoT, smart home, industrial monitoring, and automation systems. The antenna supports ZigBee, LoRa, SigFox, and RFID standards, making it suitable for a wide range of low-power, wide-area network applications. Its thru-hole mount design ensures secure installation on PCBs, and the ground plane dependent construction enhances signal quality in embedded environments.

Connections

868MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Thru-Hole Mount Ceramic
Location: Internal
Type: Single

Connection 1 - 868 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870 MHz
VSWR: ~1.9:1
Peak Gain (dBi): ~6.4
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Hemispherical
Axial Ratio (dB): 3 max
Polarization: RHCP
