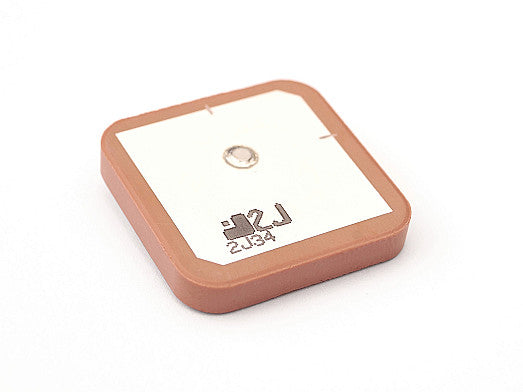

2JCP2540101a GNSS thru-hole mount Ceramic Antenna

This high-gain ceramic antenna is designed for reliable GNSS signal reception, supporting GPS, QZSS, and Galileo standards at 1575 MHz. Its compact, embedded form factor makes it ideal for integration into a wide range of applications, including consumer electronics, robotics, drones, fleet management, smart cities, and more. The antenna is ground plane dependent and optimized for internal mounting, ensuring stable performance in demanding environments.

Connections

GPS/QZSS/Galileo/L1

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Location: Internal
Mounting: Thru-Hole Mount Ceramic
Satellite Navigation: GNSS
Type: Single

Connection 1 - GNSS

Standards: GPS/QZSS/Galileo
Frequency: 1575.42 MHz
Passive Gain (dBi): ~3.9
Efficiency (%): ~69
Radiation Pattern: Hemispherical
Axial Ratio (dB): 3 max
Polarization: RHCP

Download Datasheet PDF
