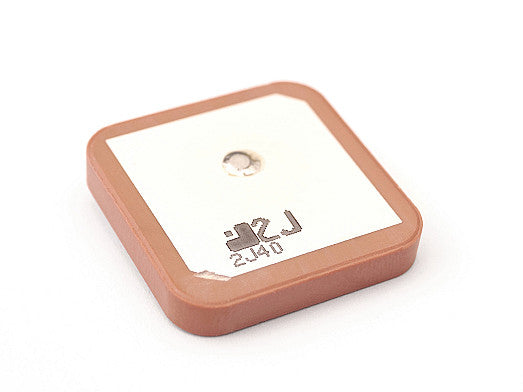

2JCP2540101Ga GNSS ceramic passive Antenna thru-hole mount

This high-gain ceramic passive antenna is designed for reliable GNSS signal reception, supporting GPS, GLONASS, QZSS, and Galileo systems. Its compact, embedded form factor makes it ideal for integration into a wide range of applications, including consumer electronics, robotics, drones, logistics, smart cities, fleet management, and more. The antenna is ground plane dependent and optimized for stable performance in demanding environments.

Connections

GPS/GLO/QZSS/Galileo/L1

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Thru-Hole Mount Ceramic
Location: Internal
Type: Single
Satellite Navigation: GNSS

Connection 1 - GNSS

Standards: GPS/GLONASS/QZSS/Galileo
Frequency: 1575.42, 1598-1606 MHz
Passive Gain (dBi): ~3.6, ~3.9
Efficiency (%): ~65, ~68
Radiation Pattern: Hemispherical

Download Datasheet PDF
