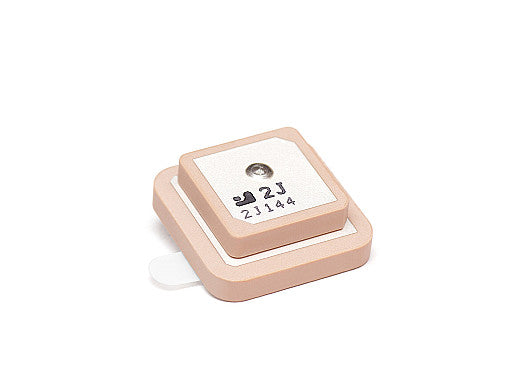

2JCP2583101Gc GNSS thru-hole mount Ceramic Antenna L1/L5

This high-precision ceramic antenna delivers advanced GPS accuracy by supporting both L1 and L5 bands, making it ideal for applications requiring superior positioning and reliability. Its multi-constellation compatibility covers GPS, GLONASS, Galileo, IRNSS, QZSS, BeiDou, and SBAS, ensuring robust performance in diverse environments. The antenna's hemispherical radiation pattern and RHCP polarization provide high efficiency and peak gain, making it suitable for demanding navigation and safety-critical systems.

• Designed for aviation safety, autonomous vehicles, agriculture, and navigation
• Supports advanced correction data for enhanced accuracy
• Compact form factor for easy internal integration
• Durable ceramic construction for reliable operation in harsh conditions

Connections

GPS/GLO/QZSS/Galileo/IRNSS/L1L5

Installation / Environmental

The small form factor allows for easy off-the-shelf internal integration via thru-hole mount and additional high-quality 5000NS double-sided adhesive. Both patches are constructed with high quality ceramic material offering durability in temperatures ranging between -40C to +85C. This is a passive antenna and for cable runs of more than 100 feet, we recommend adding in-inline amplifiers to account for transmission line loss. Our highly trained experts are available to assist our customers with tuning and integration support for optimal antenna performance. Antennas support the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Stacked Patch
Location: Internal
Mounting: Thru-Hole Mount Ceramic
Satellite Navigation: GNSS
Type: Single

Connection 1 - GNSS (GPS/GLONASS/QZSS/Galileo/IRNSS/SBAS/L1L5)

Technologies: GPS/Glonass/QZSS/Galileo/IRNSS/SBAS/L1L5
Bandwidth (MHz): 1176, 1575-1606
Bands: L5, L1
Frequency: 1176.45, 1575.42, 1602
Standards: GPS(L5), BeiDou(B2a), QZSS(L5), Galileo(E5a), IRNSS(L5), GPS(L1C), GLONASS(L1OF), QZSS(L1C), Galileo(E1), SBAS (L1)
Return Loss (dB): ~-26.2, ~-12.6
VSWR: ~1.1:1, ~1.6:1
Efficiency (%): ~63.6, ~77.6
Passive Peak Gain (dBi): ~3.1, ~4.6
Average Gain (dB): ~-2.0, ~-1.2
Impedance (Ohm): 50
Radiation Pattern: Hemispherical
Polarization: RHCP
