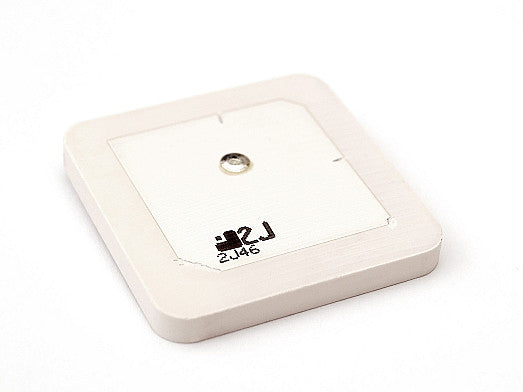

2JCP3640101Ca GNSS thru-hole mount ceramic Antenna

This high-gain embedded ceramic antenna is designed for reliable GNSS signal reception, supporting GPS, GLONASS, BeiDou, QZSS, and Galileo systems. Its compact form factor and ground plane dependency make it ideal for integration into a wide range of devices where space is limited. The antenna is well-suited for applications such as consumer electronics, robotics, drones, fleet management, smart cities, and more, providing precise location tracking and navigation capabilities.

Connections

GPS/GLO/BEI/QZSS/Galileo/L1

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Thru-Hole Mount Ceramic
Location: Internal
Satellite Navigation: GNSS
Type: Single

Connection 1 - GNSS

Standards: GPS/GLONASS/BeiDou/QZSS/Galileo
Frequency: 1561.098, 1575.42, 1598-1606 MHz
Passive Gain (dBi): ~4.0, ~3.8, ~4.1
Efficiency (%): ~73, ~69, ~71
Radiation Pattern: Hemispherical
Polarization: RHCP
