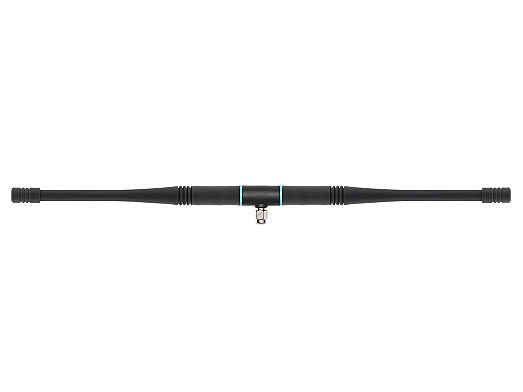

2JD0510-C728N TETRA, UHF, LPWA connector mount Dipole Antenna

This high-performance dipole antenna is designed for reliable operation in the 380-470 MHz frequency range, supporting TETRA, UHF, and LPWA applications. Its ground plane independent design ensures consistent performance across various installation environments. The antenna is tunable to the desired center frequency, making it suitable for mission-critical communications, public safety, defense, asset tracking, and first responder fleets. With a narrowband focus and robust construction, it is ideal for demanding professional and industrial use cases.

Connections

380-470MHz/LPWA/TETRA/UHF

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - TETRA/UHF

Standards: TETRA/UHF
Frequency: 380-470 MHz
VSWR: ~4.1:1
Efficiency (%): ~59.3
Peak Gain (dBi): ~0.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
