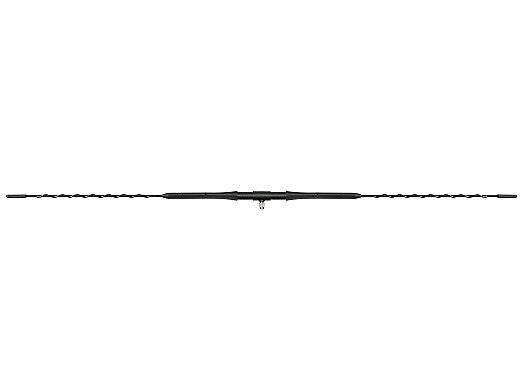

2JD0665-C728N FM, DAB dipole Antenna connector mount

This high-gain dipole antenna is designed for reliable reception of both FM and DAB radio signals, supporting analog and digital radio across 88-108 MHz and 174-240 MHz bands. Its omnidirectional design ensures 360° horizontal and vertical coverage, while linear polarization delivers optimal read range and simultaneous device operation. The robust TPE housing and slim profile allow for easy installation in a variety of environments, making it ideal for indoor FM and DAB broadcast applications.

Connections

FM (88-108 MHz)
DAB (150-240 MHz)

Installation / Environmental

Manufactured with high-quality and robust TPE material housing, this ground plane independent antenna operates at -40°C to 85°C temperature range. With slim dimensions of 16 × 1074 mm, it can be easily installed with the connector mount. All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance. The cable and connectors are fully customizable.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - FM/DAB

Standards: FM and DAB
Frequency: 88-108, 174-240 MHz
Impedance (Ohm): 75
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
