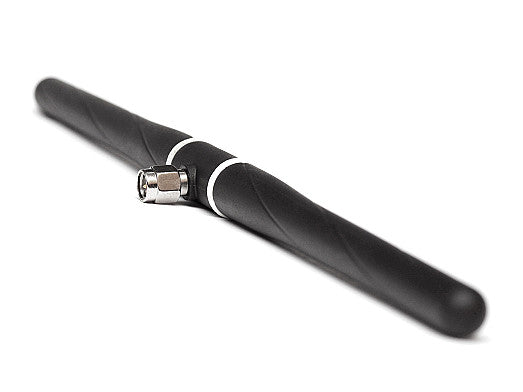

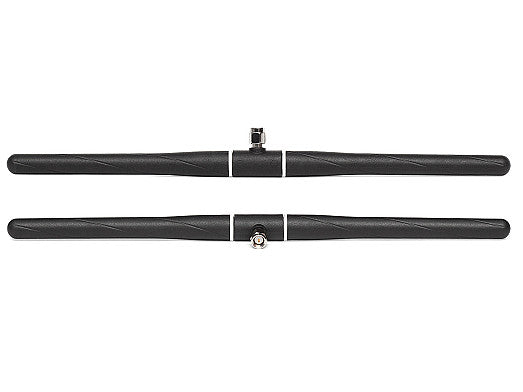

2JD0909-C728N FM Radio dipole Antenna connector mount SMA-M

This high-performance dipole antenna is engineered for optimal FM radio transmission and reception across the entire 88-108 MHz band. Its omni-directional design ensures 360° horizontal and vertical coverage, providing reliable signal quality for both transmitting and receiving applications. The antenna features linear polarization for superior read range and simultaneous device operation, making it suitable for both personal and professional use.

• Ideal for telematics, public radio broadcast, AM/FM radio, and radio communication links
• Ground plane independent for flexible installation
• Durable TPE housing withstands temperatures from -40°C to +85°C
• Compact form factor for easy integration

Connections

FM (88-108 MHz)

Connector & Cable

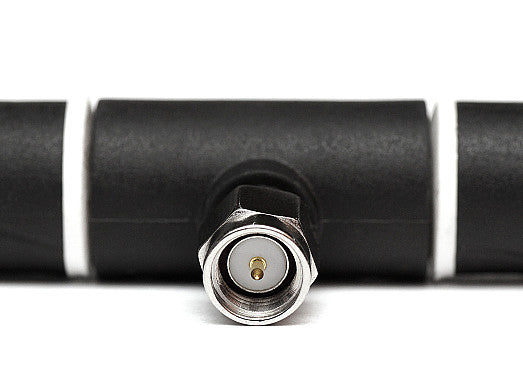

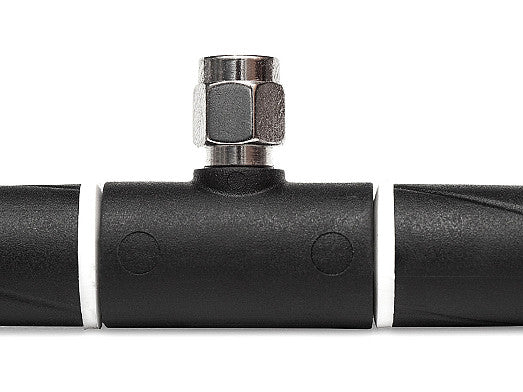

• Connector Type: SMA-M

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - FM (88-108 MHz)

Standards: AM and FM
Frequency: 88-108 MHz
Gain (dBi): 0
Impedance (Ohm): 75
Polarisation: Linear
Radiation Pattern: Omni-Directional
