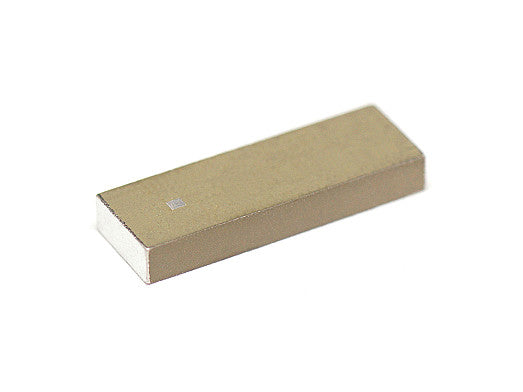

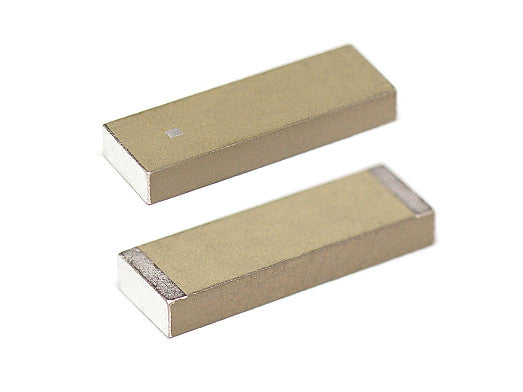

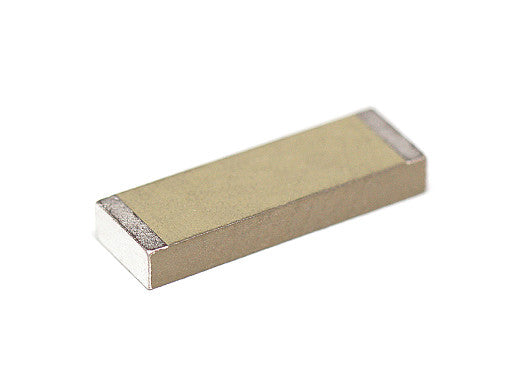

2JE15b 433 MHz ISM surface mount ceramic Antenna

This compact surface mount ceramic antenna is designed for reliable performance in the 433 MHz ISM band. Its small footprint and ground plane dependent design make it ideal for embedded applications where space is limited. The ceramic construction ensures durability and consistent signal quality, while the monopole structure supports easy integration into a variety of devices. Typical use cases include IoT, smart home, industrial monitoring, asset tracking, and consumer electronics.

Connections

433MHz/Sigfox/LoRa/LPWA/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: Internal
Mounting: Surface Mount Ceramic
Type: Single

Connection 1 - 433 MHz ISM

Standards: ISM, LoRa
Frequency: 433-435 MHz
VSWR: ~1.5:1
Peak Gain (dBi): ~-10.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 10
