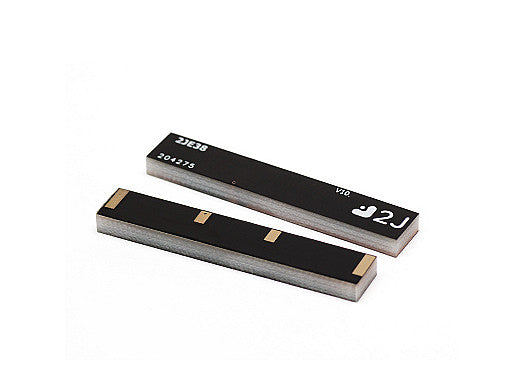

2JE38 4G/LTE internal surface mount fiberglass Antenna

This compact, high-performance antenna is designed for reliable 4G/LTE, 3G, and 2G connectivity across a wide frequency range. Its SMT brick embedded design and fiberglass construction ensure durability and easy integration into a variety of devices. The antenna is ground plane dependent, making it ideal for applications where space is limited and performance is critical. Suitable for use in consumer electronics, robotics, drones, IoT devices, and more, it delivers consistent signal quality for demanding environments.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Technical Specifications

Operating Temperature: -40 °C to +105 °C
Antenna Technologies: Monopole
Cellular Technologies: 4G/LTE
Location: Internal
Mounting: Surface Mount Fiberglass
Type: Single

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.4:1, ~1.5:1, ~1.5:1
Efficiency (%): ~54.4, ~66.9, ~65.5
Peak Gain (dBi): ~1.4, ~4.0, ~3.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
