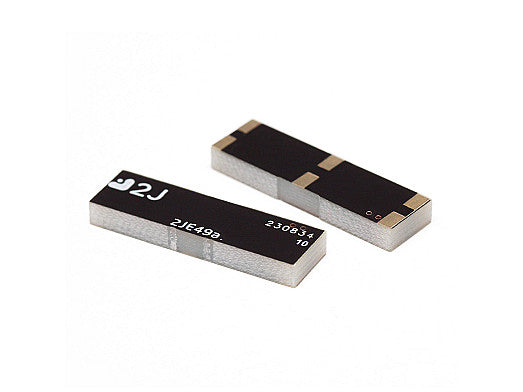

2JE49a ISM surface mount compact fiberglass Antenna

This compact surface mount antenna is optimized for 868/915 MHz ISM applications, offering reliable performance for ZigBee, SigFox, LoRa, and RFID systems. Its fiberglass construction ensures durability while maintaining a small footprint, making it ideal for integration into space-constrained devices. The antenna is ground plane dependent and designed for easy integration into embedded systems, supporting a wide range of IoT, smart home, industrial, and automation applications.

Connections

868-915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: Internal
LPWAN & IoT Communication: LPWA, SigFox, LoRa
Mounting: Surface Mount Fiberglass
Short-Range Wireless Standards: ZigBee
Type: Single

Connection 1 - 868/915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870, 902-928 MHz
VSWR: ~1.8:1, ~1.5:1
Efficiency (%): ~66.7, ~81.7
Peak Gain (dBi): ~5.0, ~5.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
