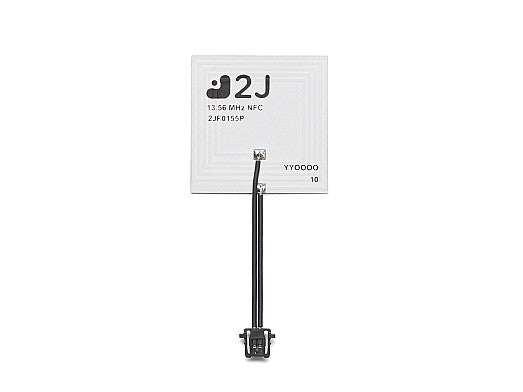

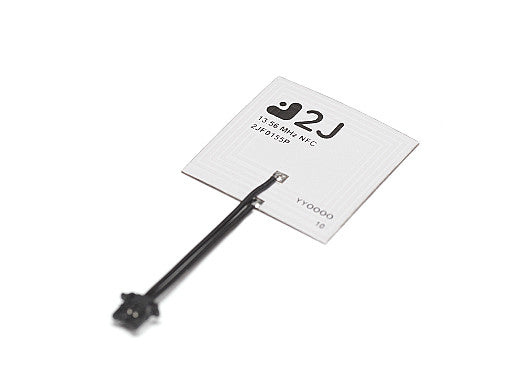

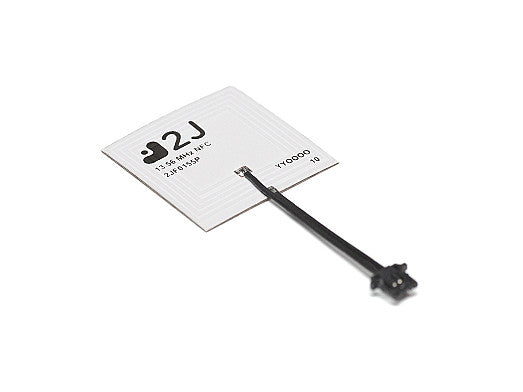

2JF0155P NFC Antenna flexible adhesive PCB

This ultra-thin, flexible NFC antenna is designed for easy integration into compact devices. Its self-adhesive backing allows for quick and secure installation on various surfaces, making it ideal for embedded applications where space is limited. The antenna operates at 13.56 MHz, supporting reliable NFC and RFID communication for a wide range of use cases such as smart cards, wearables, IoT devices, and access control systems. Its ground plane independence and customizable cable and connector options provide versatility for different design requirements.

Connections

NFC (13.56 MHz)

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Flexible
Location: Internal
Type: Single

Connection 1 - NFC

Standards: NFC
Frequency: 13.56 MHz
Reading Distance (mm): 25
Self-Resonance Frequency: 100 MHz
Inductance (μH): ~1.0
Resistance (Ohm): ~1.6
Q Factor: 45
Impedance (Ohm): 50 / 75
Matched Q Value: 5-25
