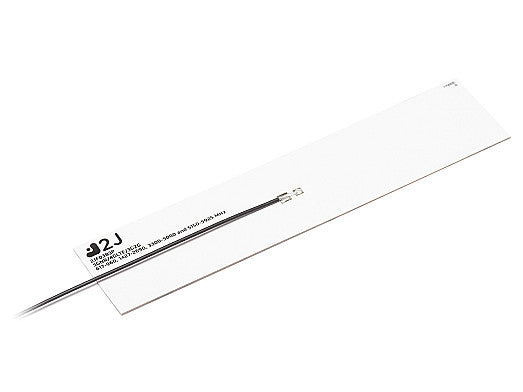

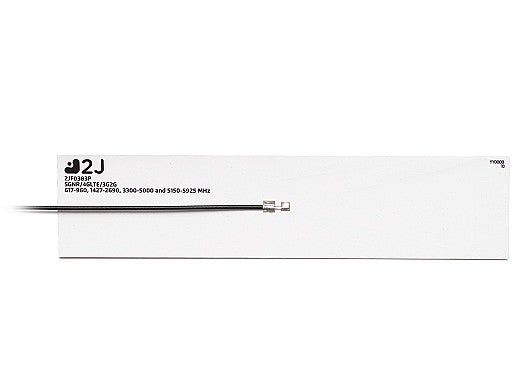

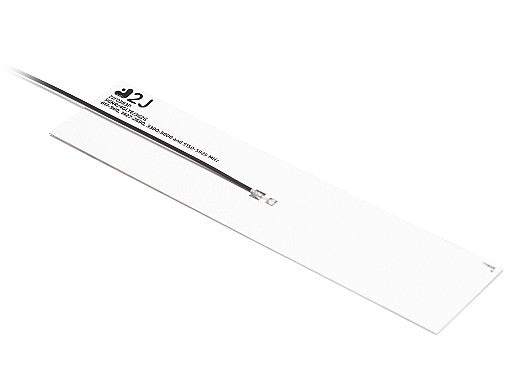

2JF0383P 5G flexible adhesive Antenna U.FL 18cm

This high-performance flexible adhesive antenna is designed for optimal 5G, 4G, 3G, and 2G connectivity across a wide frequency range. Its ultra-thin, ground plane independent design allows for easy integration into compact and curved device housings, making it ideal for IoT, M2M, and consumer electronics. The antenna delivers robust omni-directional coverage, high efficiency, and reliable performance, supporting both current and legacy cellular technologies for maximum compatibility. Applications include industrial automation, wearables, public safety, transportation, robotics, and more.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: U.FL
• Cable Length: 18cm
• Cable Type: 1.37mm Mini-Coax

Installation / Environmental

The antenna is ground plane independent and features ultra-thin dimensions of 152.4 × 35 × 0.2 mm with strong adhesive mounting for easy installation inside plastic housings, including curved surfaces. It is constructed from production-grade flexible polymer and can withstand extreme temperatures from -40°C to +85°C, making it suitable for demanding indoor or outdoor applications. The standard configuration includes a U.FL connector and a 1.37mm Mini-Coax cable measuring 180mm in length. Custom cable and connector options are available upon request.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Monopole
Cellular Technologies: 5G, 4G, 3G, 2G
Location: Internal
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Adhesive Mount Flexible
Type: Single

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-8.0, ~-11.6, ~-8.7, ~-7.8
VSWR: ~2.6:1, ~1.9:1, ~2.3:1, ~2.5:1
Efficiency (%): ~60.0, ~67.8, ~52.9, ~50.4
Peak Gain (dBi): ~2.0, ~2.8, ~3.3, ~5.3
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
