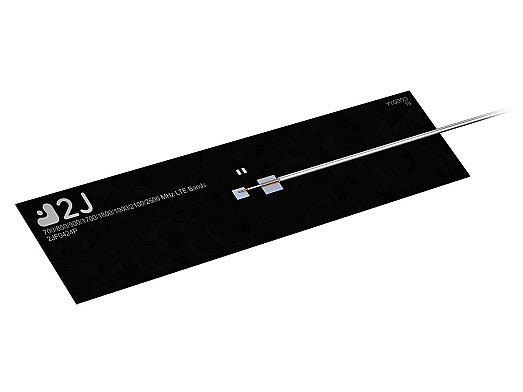

2JF0424P 4G/LTE adhesive mount flexible internal Antenna

This ultra-thin, flexible adhesive antenna is designed for seamless integration into compact devices and enclosures. Its ground plane independence and wideband coverage make it ideal for IoT, automotive, and wireless systems requiring reliable 360° signal performance. The self-adhesive backing allows for easy installation on various surfaces, supporting applications such as consumer electronics, robotics, wearables, asset tracking, and more.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Flexible
Location: Internal
Cellular Technologies: 4G/LTE, 3G, 2G
Type: Single

Connection 1 - Cellular/4G LTE

Frequency: 698-960, 1710-2170, 2500-2700 MHz
Peak Gain (dBi): ~1.5, ~3.1, ~3.5
Standards: 2G, 3G, 4G
VSWR: ~1.7:1, ~1.1:1, ~1.7:1
Efficiency (%): ~58, ~74, ~61
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
