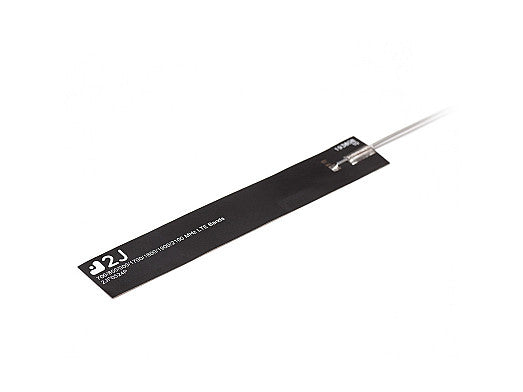

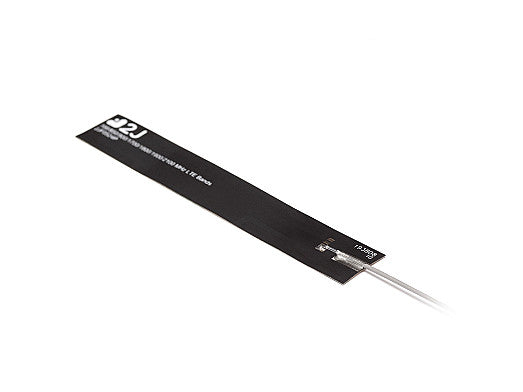

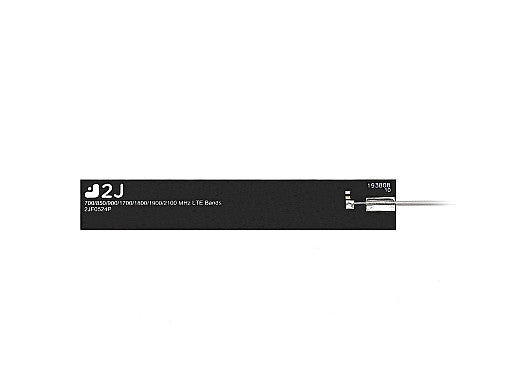

2JF0524P 4G/LTE adhesive mount flexible internal Antenna

This ultra-thin, flexible internal antenna is designed for reliable 4G LTE, 3G, and 2G connectivity. Its self-adhesive backing allows for easy integration into a wide range of devices, making it ideal for applications where space is limited and a discreet installation is required. The omnidirectional design ensures 360° coverage and consistent performance, while the ground plane independent construction provides installation flexibility. Suitable for consumer electronics, IoT devices, robotics, wearables, asset tracking, and more.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Cellular Technologies: 4G/LTE
Location: Internal
LPWAN & IoT Communication: LPWA, NB-IoT, Cat-X, Cat-Mx, Cat-NBx
Mounting: Adhesive Mount Flexible
Type: Single

Connection 1 - Cellular/4G LTE

Frequency: 698-960, 1710-2170 MHz
Standards: 2G, 3G, 4G
VSWR: ~1.7:1, ~1.6:1
Efficiency (%): ~52, ~56
Peak Gain (dBi): ~0.9, ~2.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
