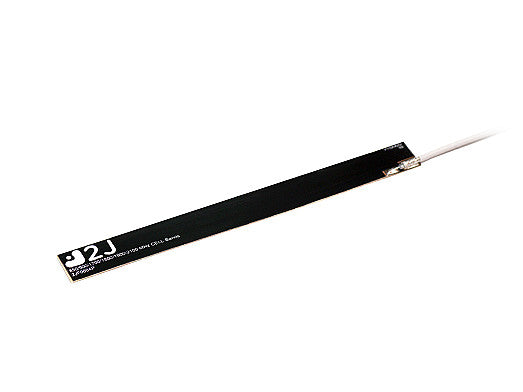

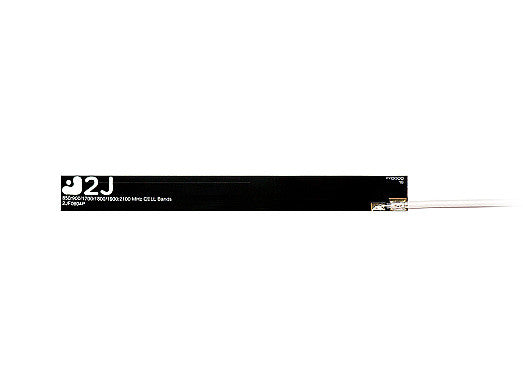

2JF0604P 3G, 2G cellular flexible adhesive Antenna

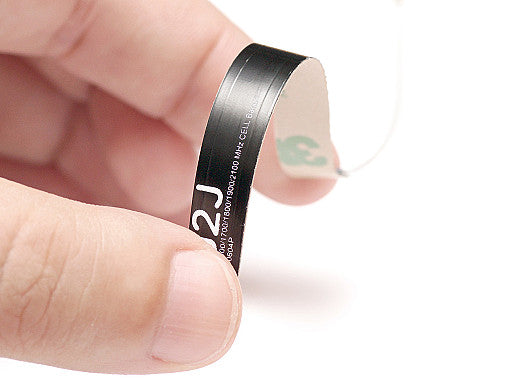

This ultra-thin, flexible adhesive antenna is designed for seamless integration into compact devices requiring reliable cellular connectivity. Its omnidirectional design ensures 360° coverage, making it ideal for applications such as consumer electronics, robotics, wearables, asset tracking, and telematics. The antenna is ground plane independent and features a self-adhesive backing for easy installation on various surfaces. High efficiency and customizable cable and connector options make it suitable for a wide range of internal device solutions.

Connections

3G/2G/CELL

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Flexible
Location: Internal
Type: Single

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~2.4:1, ~1.6:1
Efficiency (%): ~40.2, ~67.8
Peak Gain (dBi): ~0.7, ~0.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
