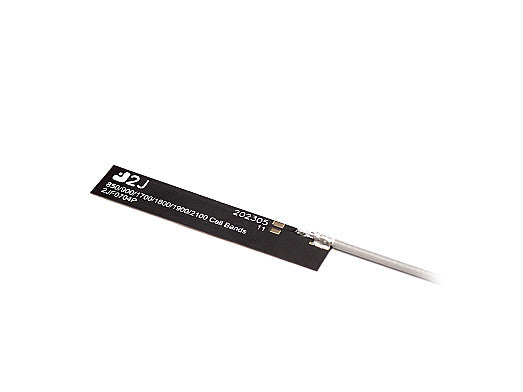

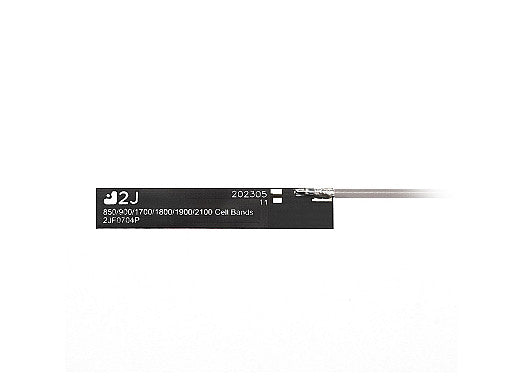

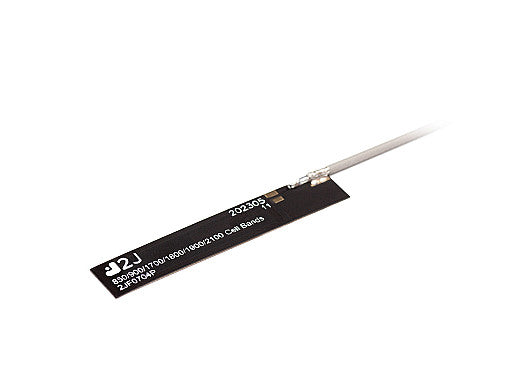

2JF0704P 3G, 2G cellular flexible ultra-thin PCB adhesive Antenna

This ultra-thin, flexible adhesive antenna is designed for seamless integration into compact devices requiring reliable cellular connectivity. Its omnidirectional design ensures 360° coverage, making it ideal for applications such as consumer electronics, robotics, mobile networks, asset tracking, wearables, and more. The antenna is ground plane independent and features a self-adhesive backing for easy installation in internal environments. Its small form factor allows for versatile placement, supporting a wide range of wireless applications.

Connections

3G/2G/CELL

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Flexible
Location: Internal
Type: Single

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~3.9:1, ~6.5:1
Efficiency (%): ~30.1, ~32.1
Peak Gain (dBi): ~0.1, ~0.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
