2JF0883Pa 5G adhesive flexible polymer Antenna U.FL 42cm

This ultra-compact antenna delivers high performance for 5G, 4G, 3G, and 2G cellular applications, making it ideal for integration into devices with strict size constraints. Its flexible polymer construction and self-adhesive mount allow for versatile installation on PCBs or within compact enclosures, supporting a wide range of industrial, consumer, and IoT applications. The antenna is optimized for efficiency across low and high frequency bands, ensuring reliable connectivity and compatibility with global cellular standards.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: U.FL
• Cable Length: 42cm
• Cable Type: 1.37mm Mini-Coax

Installation / Environmental

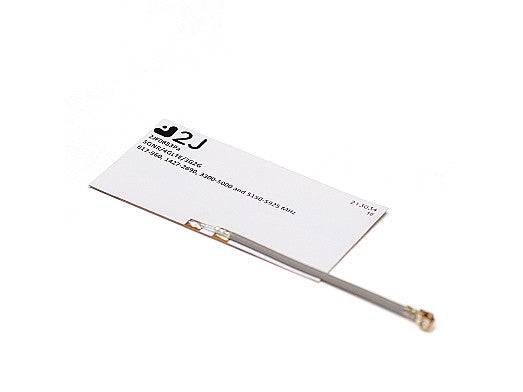

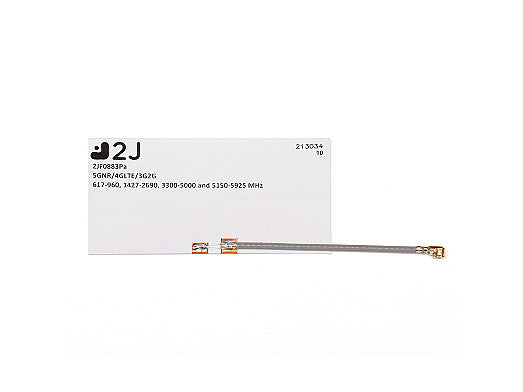

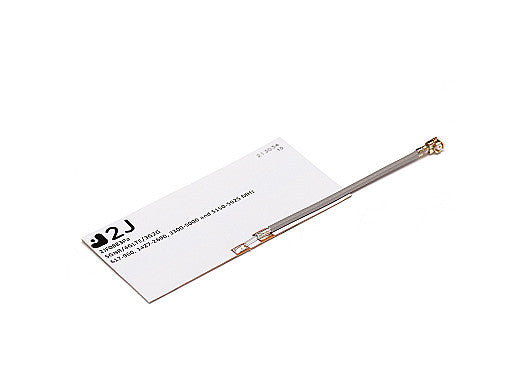

The ultra-compact 2JF0883P, measuring only 50 x 25 x 0.2 mm, is manufactured with high quality flexible polymer material and is the smallest antenna footprint on the market without sacrificing performance. Designed with a self-adhesive mount allows for versatile in device or PCB installations where size restrictions are challenging. This flexible antenna will fit any positioning requirements as it can be integrated upwards, flat, downwards and with intermediate angles. Adding a short cable between the antenna and the ground plane extension allows us to minimize the antenna size while maximizing the electrical length of the collinear and non-collinear radiated elements. The antenna is right hand fed allowing for simple antenna integration and some PCB cellular modules which may have the signal pad on the right side or left side. (Please see product 2JF0883P for the 5GNR left hand feed antenna option). This new technology makes this antenna a future proof solution, considering the high demand for smaller devices and antenna miniaturization.
2JF0883Pa comes with a U.FL connector and a perfectly tuned 42mm long 1.37mm Mini-Coax cable. We offer a wide range of alternative connectors and cables to meet any customization needs.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Cellular Technologies: 5G, 4G, 3G, 2G
Location: Internal
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Adhesive Mount Flexible
Type: Single

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G and 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-5.6, ~-6.7, ~-7.4, ~-7.8
VSWR: ~3.6:1, ~3.6:1, ~2.9:1, ~2.6:1
Efficiency (%): ~45.5, ~45.7, ~45.4, ~45.9
Peak Gain (dBi): ~1.3, ~0.8, ~3.0, ~3.0
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
