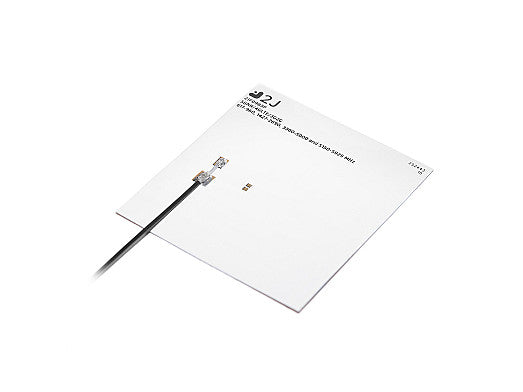

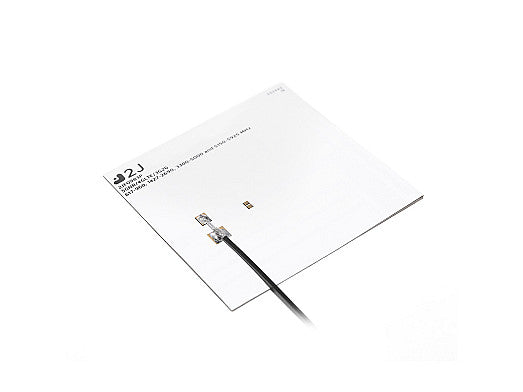

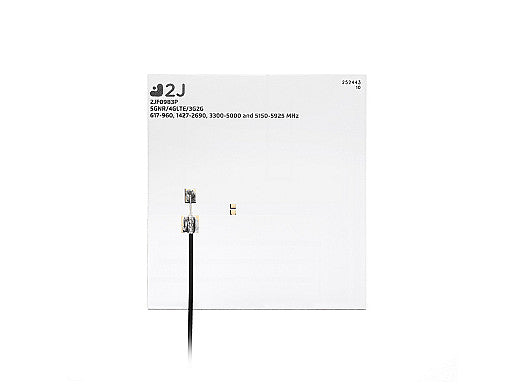

2JF0983P 5G adhesive Antenna flexible polymer adhesive mount

This ultra-thin, flexible polymer antenna delivers high performance across 5G, 4G, 3G, and 2G bands. Its adhesive mount design allows for easy integration into a wide range of compact devices, making it ideal for IoT, wearables, drones, and other applications where space and installation flexibility are critical. The antenna is ground plane independent and supports a wide frequency range, ensuring reliable connectivity and backward compatibility with 4G LTE networks.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Adhesive Mount Flexible
Type: Single

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G and 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-14.5, ~-9.5, ~-8.6, ~-12.7
VSWR: ~1.7:1, ~2.1:1, ~2.8:1, ~1.9:1
Efficiency (%): ~63.2, ~58.9, ~56.2, ~52.0
Peak Gain (dBi): ~2.0, ~2.6, ~2.3, ~3.3
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
