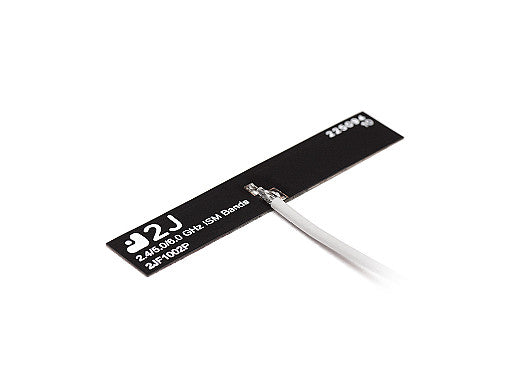

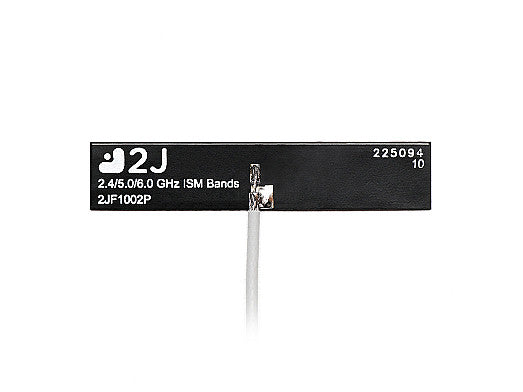

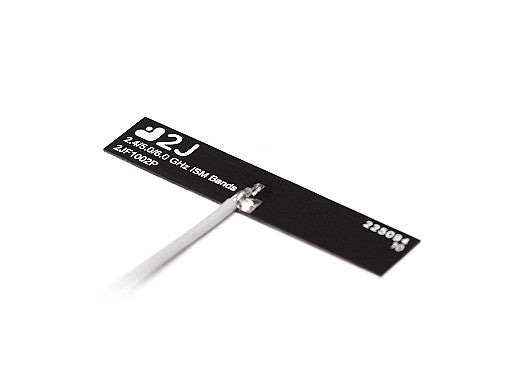

2JF1002P Wi-Fi 6E/7, ISM flexible ultra-thin PCB adhesive Antenna

This ultra-thin, flexible PCB adhesive antenna is designed for high-performance wireless applications across Wi-Fi 6E, Wi-Fi 7, and ISM bands. Its compact form factor and ground plane independence make it ideal for integration into space-constrained devices, offering reliable connectivity and high efficiency. The self-adhesive backing ensures easy installation on a variety of surfaces, making it suitable for consumer electronics, robotics, drones, smart home devices, and more. Customizable cable and connector options are available to meet specific integration needs.

Connections

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: Internal
Mounting: Adhesive Mount Flexible
Type: Single

Connection 1 - Wi-Fi 6E/7, ISM

Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
Standards: WiFi, Bluetooth, ZigBee, ISM, SigFox, LoRa
VSWR: ~1.2:1, ~2.3:1, ~2.4:1
Efficiency (%): ~91.1, ~65.7, ~60.0
Peak Gain (dBi): ~4.2, ~6.1, ~6.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
