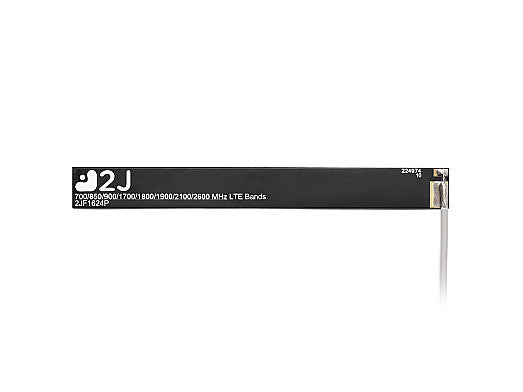

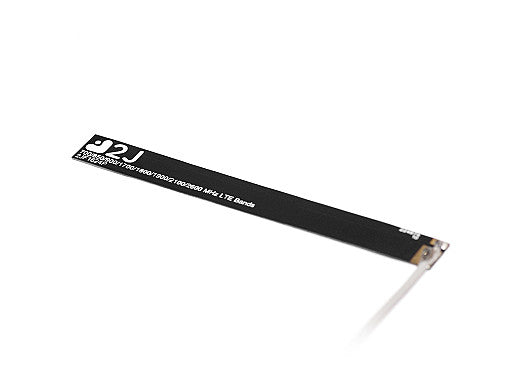

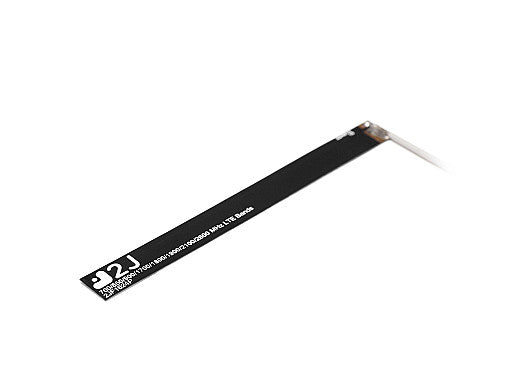

2JF1624P 4G/LTE adhesive mount flexible Antenna

This ultra-thin, flexible PCB antenna is designed for internal installations where space is limited. Its omnidirectional pattern ensures reliable 360° coverage for 4G LTE, 3G, and 2G networks. The adhesive mount allows for easy integration into a variety of devices, making it ideal for applications such as consumer electronics, IoT, robotics, smart home, and more. The antenna is ground plane independent and offers high performance across a wide frequency range.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Cellular Technologies: 4G/LTE
Location: Internal
LPWAN & IoT Communication: LPWA, NB-IoT, Cat-X, Cat-Mx, Cat-NBx
Mounting: Adhesive Mount Flexible
Type: Single

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~3.1:1, ~2.5:1, ~3.7:1
Efficiency (%): ~70.7, ~60.5, ~38.1
Peak Gain (dBi): ~2.3, ~2.7, ~0.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
