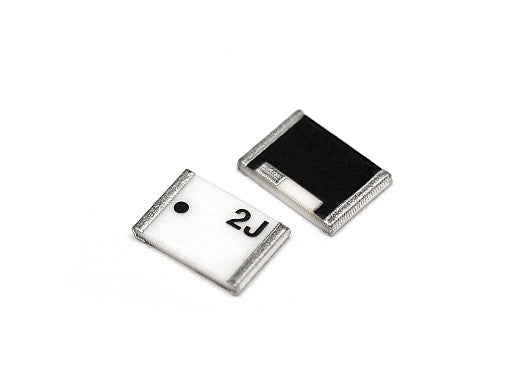

2JL11 ISM surface mount Antenna ceramic

This compact surface mount antenna is optimized for 868 MHz ISM applications, offering reliable performance for ZigBee, SigFox, LoRa, and other LPWAN standards. Its ceramic construction and SMT loop design make it ideal for integration into space-constrained devices. The antenna is ground plane dependent and well-suited for embedded solutions in smart home, IoT, industrial, and automation environments.

Connections

868MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: SMT Loop Embedded
Location: Internal
LPWAN & IoT Communication: LPWA, SigFox, LoRa
Mounting: Surface Mount Ceramic
Short-Range Wireless Standards: ZigBee
Type: Single

Connection 1 - 868 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870 MHz
VSWR: ~3.1:1
Peak Gain (dBi): ~-1.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
