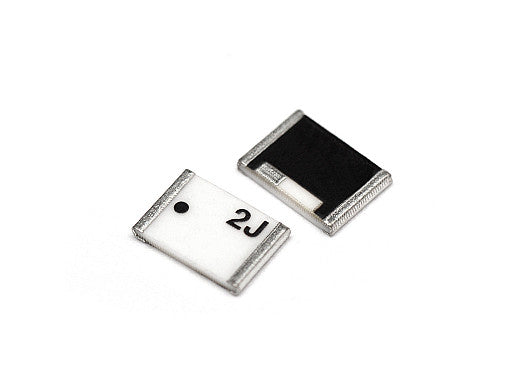

2JL21 915MHz ISM surface mount ceramic internal Antenna

This compact surface mount ceramic antenna is optimized for 915 MHz ISM applications, supporting ZigBee, ISM, SigFox, and LoRa standards. Its small size and ground plane dependent design make it ideal for integration into space-constrained devices. The antenna is well-suited for a wide range of IoT, automation, and smart device applications, offering reliable performance for short-range wireless transmissions.

Connections

915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Loop Embedded
Location: Internal
Mounting: Surface Mount Ceramic
Type: Single

Connection 1 - 915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 902-928 MHz
VSWR: ~1.5:1
Peak Gain (dBi): ~1.2
Impedance (Ohm): 50
Polarisation: Linear
