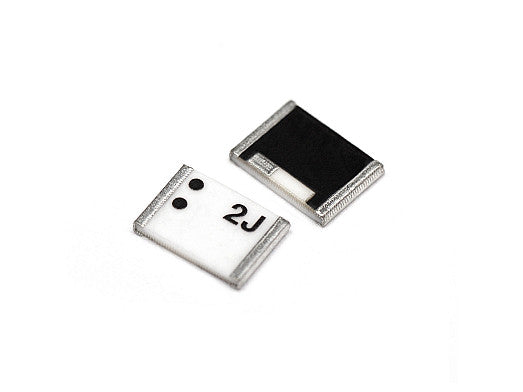

2JL61 GNSS ceramic Antenna surface mount

This compact ceramic antenna is engineered for high-precision global navigation applications, supporting GPS, GLONASS, BeiDou, QZSS, and Galileo standards. Its surface mount design allows for easy integration into a wide range of devices, making it ideal for embedded solutions where space is limited. The antenna delivers reliable omni-directional coverage and is well-suited for consumer electronics, robotics, drones, fleet management, smart cities, and more. Its ground plane dependent design ensures optimal performance in various environments.

Connections

GPS/GLO/BEI/QZSS/Galileo/L1

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Surface Mount Ceramic
Location: Internal
Satellite Navigation: GNSS
Type: Single

Connection 1 - GNSS

Standards: GPS/GLONASS/BeiDou/QZSS/Galileo
Frequency: 1561.098, 1575.42, 1598-1606 MHz
Peak Gain (dBi): ~1.5, ~1.3, ~1.5
Efficiency (%): ~71.8, ~70.0, ~68.0
Impedance (Ohm): 50
Radiation Pattern: Omni-Directional
Polarization: Linear

Download Datasheet PDF
