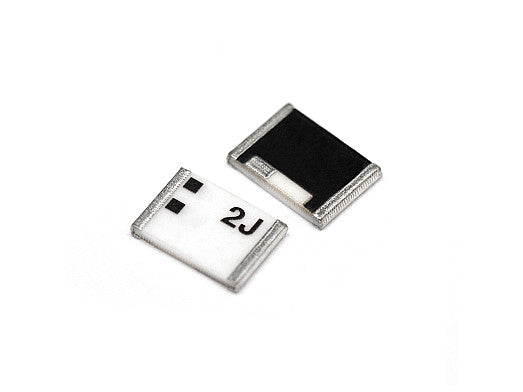

2JL67 GNSS surface mount ceramic loop Antenna

This compact embedded antenna is designed for high-precision geolocation applications requiring centimeter-level accuracy. Supporting GPS L1, L2, L5, and L6 bands, it is ideal for devices where board space is limited. The antenna covers multiple GNSS systems, including GPS, GLONASS, BeiDou, Galileo, IRNSS, and QZSS, making it suitable for a wide range of navigation and tracking solutions. Its wide bandwidth ensures stable efficiency and reception across all supported bands, while the high peak gain and efficiency help reject multipath fading and interference. This makes it a reliable choice for applications such as automotive navigation, asset tracking, UAVs, robotics, and IoT devices.

Connections

GPS/GLO/BEI/QZSS/Galileo/IRNSS/L1L2L5L6

Installation / Environmental

The 2JL67 is a compact and easy-to-integrate ceramic antenna, manufactured without any hazardous materials and is REACH and RoHS compliant. This is a surface mount antenna that is ground plane dependent and requires a ground plane of 80 x 40 mm.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Loop
Location: Internal
Mounting: Surface Mount Ceramic
Satellite Navigation: GNSS
Type: Single

Connection 1 - GNSS (GPS/GLONASS/BeiDou/QZSS/Galileo/IRNSS/SBAS/L1L2L5L6)

Technologies: GPS, GLONASS, BeiDou, QZSS, Galileo, IRNSS, SBAS
Bands: L1, L2, L5, L6
Bandwidth (MHz): 1176-1208, 1227-1246, 1268-1279, 1561-1606
Frequency (MHz): 1176.45, 1207.14 / 1227.6, 1246.00 / 1268.52, 1278.75 / 1561.09, 1575.42, 1602.00
Standards: GPS(L5), BeiDou(B2a, B2b), QZSS(L5), Galileo(E5a), IRNSS(L5) / GPS(L2C), GLONASS(L2OF), QZSS(L2C) / GPS(L6), BeiDou(B3), QZSS(L6), Galileo(E6) / GPS(L1C), GLONASS(L1OF), BeiDou(B1), QZSS(L1C), Galileo(E1), SBAS (L1)
Return Loss (dB): ~-11.4, ~-7.4, ~-4.4, ~-18.9
VSWR: ~2.0:1, ~2.5:1, ~4.1:1, ~1.3:1
Efficiency (%): ~70.6, ~72.6, ~65.0, ~78.9
Passive Peak Gain (dBi): ~2.9, ~3.7, ~2.5, ~2.5
Average Gain (dB): ~-1.5, ~-1.4, ~-2.0, ~-1.0
Impedance (Ohm): 50
Radiation Pattern: Hemispherical
Polarization: Linear
