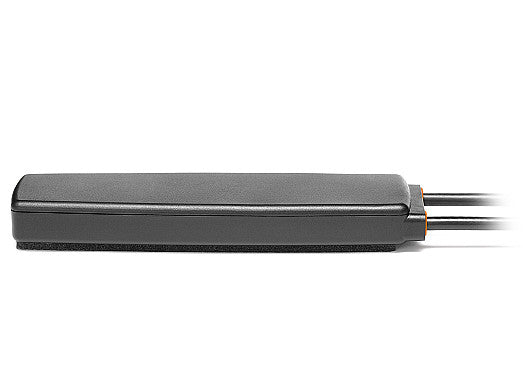

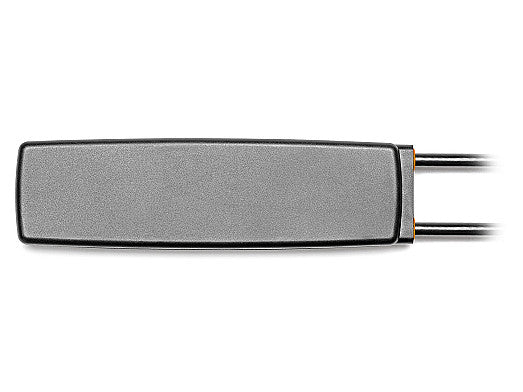

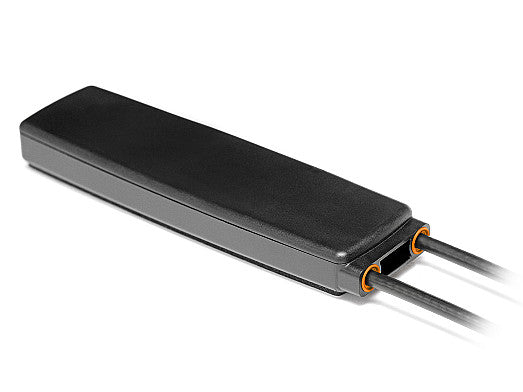

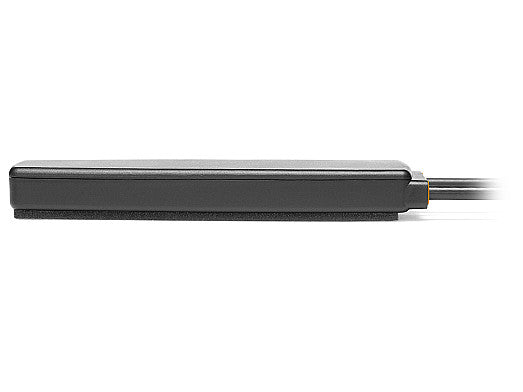

2J4983Pa 5G adhesive mount Antenna 2-in-1 SMA-M 300cm IP67/IP69

This ultra-compact, high-performance antenna is designed for reliable global connectivity across 5G, 4G, 3G, and 2G networks. Its 2-in-1 configuration supports MIMO operation, delivering robust and uninterrupted communication for demanding applications. The ultra wideband coverage ensures compatibility with a wide range of cellular bands, making it ideal for tracking, automotive navigation, machine-to-machine communication, and high-speed data transfer. The low-profile, ground plane independent design allows for flexible installation in various environments, while the waterproof ASA housing ensures durability in harsh conditions. Typical use cases include remote monitoring, critical communications, gateways, smart cities, asset tracking, and emergency services.

Connections

2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: LL195

Installation / Environmental

This waterproof antenna is manufactured with high-quality ASA material and is IP67/ IP69 certified. With an overall dimension of only 150.5 x 42 x 15.3 mm, this ground plane independent antenna features a high-grade adhesive mounting that assists in easy installation. Both Cable 1 and Cable 2 come with a standard SMA-Male connector and 300 cm long LL195 (Low Loss coaxial) cable known for good return loss, insertion loss and amplitude stability. All connectors and cables are fully customizable. This antenna is manufactured without any hazardous material and is fully REACH and RoHS compliant.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Adhesive Mount
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-8.3, ~-7.3, ~-8.5, ~-10.7
VSWR: ~2.3:1, ~3.0:1, ~2.3:1, ~2.0:1
Efficiency (%): ~41.1, ~41.6, ~43.7, ~30.3
Peak Gain (dBi): ~2.5, ~3.8, ~4.2, ~2.8
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-9.6, ~-8.2, ~-6.9, ~-7.0
VSWR: ~2.2:1, ~2.6:1, ~3.3:1, ~2.8:1
Efficiency (%): ~45.1, ~52.0, ~40.1, ~33.5
Peak Gain (dBi): ~3.2, ~5.6, ~5.1, ~4.7
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
