2J4H83Pe 5G adhesive mount Antenna 6-in-1 SMA-M 300cm

This ultra-compact 6-in-1 antenna delivers high-performance 5G connectivity across a wide frequency range, supporting 5GNR, 4G LTE, 3G, and 2G standards. Its low-profile, adhesive mount design is 55% smaller than comparable solutions, making it ideal for installations where space is limited. The antenna is engineered for robust, reliable MIMO performance, ensuring strong signal quality and seamless connectivity for demanding mobile, public safety, transportation, and industrial applications.

• Ultra-wideband coverage from 617 MHz to 5925 MHz
• Ground plane independent for flexible installation
• IP67/IP69 rated for maximum durability
• Available in black or white
• Ideal for wireless broadband, private networking, critical communications, automotive, and IoT deployments

Connections

6× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: D302

Installation / Environmental

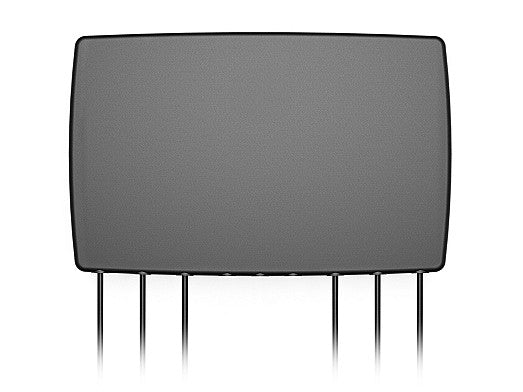

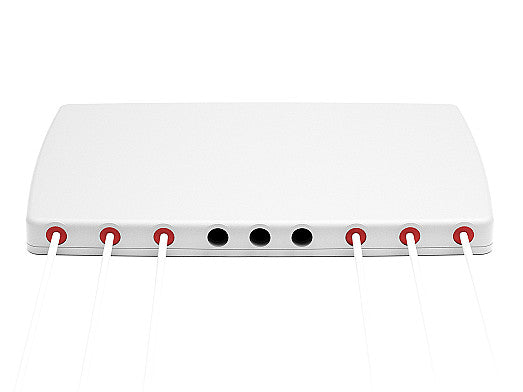

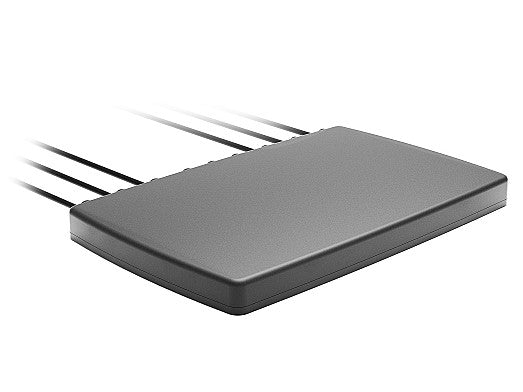

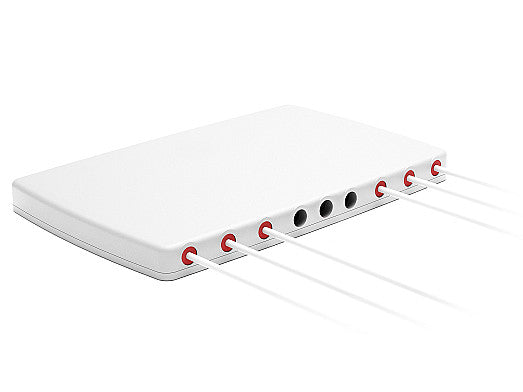

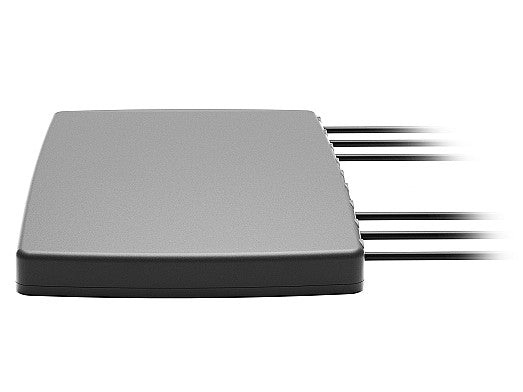

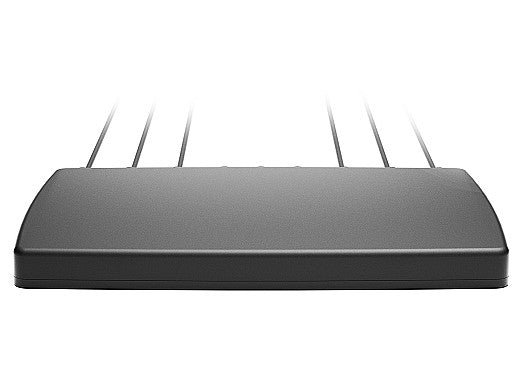

This ground plane independent antenna can be installed with an easy peel-and-stick adhesive to mount on any type of non-metallic surface making it ideal for temporary installations. The low-profile housing measures only 198 x 127 x 15.7 mm making this antenna 55% smaller than any other antenna on the market. Manufactured with ASA UV stable material and full IP67/IP69 rating offer durability and the highest level of protection against water and moisture. This antenna is available in black or white color.

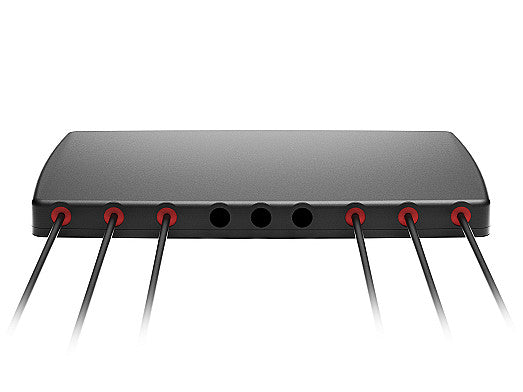

2J4H83Pe connections are standard SMA-Male and come with 300cm long D302 cables. All the cables feed from one side of the antenna housing and are tuned for optimal performance. We offer a wide range of alternative connectors and cables to meet any customization needs. Please contact our highly skilled engineers for assistance in antenna selection or customization requirements.
All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Adhesive Mount
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-11.2, ~-15.4, ~-14.2, ~-14.4
VSWR: ~1.9:1, ~1.6:1, ~1.7:1, ~1.5:1
Efficiency (%): ~42.6, ~46.5, ~38.6, ~37.6
Peak Gain (dBi): ~2.6, ~3.8, ~5.1, ~6.0
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-10.8, ~-12.1, ~-12.2, ~-11.1
VSWR: ~1.9:1, ~2.0:1, ~1.8:1, ~1.8:1
Efficiency (%): ~28.1, ~29.2, ~28.1, ~28.3
Peak Gain (dBi): ~1.0, ~0.8, ~1.6, ~3.5
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 3 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-11.3, ~-15.2, ~-12.8, ~-12.1
VSWR: ~1.9:1, ~1.6:1, ~1.8:1, ~1.7:1
Efficiency (%): ~31.2, ~39.1, ~33.0, ~30.0
Peak Gain (dBi): ~0.8, ~2.1, ~3.2, ~2.4
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 4 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-12.1, ~-15.1, ~-15.1, ~-10.8
VSWR: ~1.8:1, ~1.6:1, ~1.6:1, ~1.9:1
Efficiency (%): ~29.9, ~42.8, ~42.8, ~32.1
Peak Gain (dBi): ~0.3, ~2.7, ~2.7, ~2.9
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 5 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-11.8, ~-12.4, ~-11.8, ~-10.7
VSWR: ~1.8:1, ~2.0:1, ~1.9:1, ~1.9:1
Efficiency (%): ~22.1, ~27.1, ~29.9, ~28.3
Peak Gain (dBi): ~-0.6, ~0.6, ~2.0, ~1.9
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 6 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-12.6, ~-16.6, ~-13.9, ~-13.1
VSWR: ~1.7:1, ~1.6:1, ~1.7:1, ~1.6:1
Efficiency (%): ~33.8, ~42.4, ~34.0, ~33.9
Peak Gain (dBi): ~1.6, ~3.8, ~4.3, ~4.4
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
