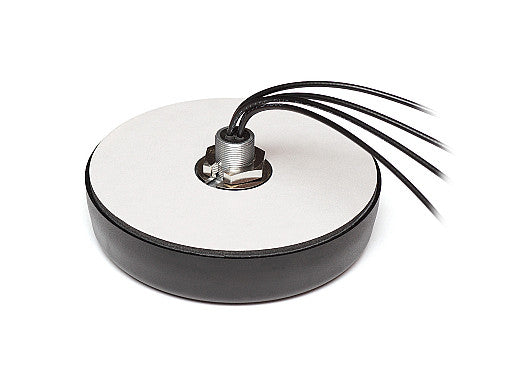

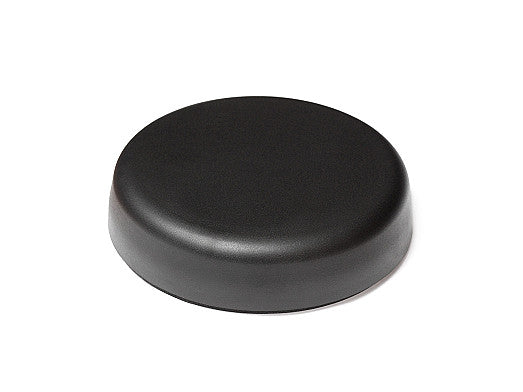

2J6586BGFc-M18-SP 5G, GNSS, Wi-Fi 6E/7, ISM screw mount Antenna 4-in-1

This ultra wideband 4-in-1 antenna is designed for high-performance connectivity across 5G, GNSS, Wi-Fi 6E/7, and ISM bands. Its robust screw mount form factor ensures secure installation for demanding automotive, public safety, and industrial applications. The antenna supports MIMO for enhanced data throughput and reliability, and features active GNSS with pre-filtering for precise positioning. With IP67, IP69, and IK09 ratings, it is built to withstand harsh environments, making it ideal for fleet management, smart cities, IoT, and mission-critical communications.

Connections

2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT, SigFox, LoRa
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-6.5, ~-11.2, ~-14.5, ~-15.7
VSWR: ~3.0:1, ~1.9:1, ~1.5:1, ~1.5:1
Efficiency (%): ~20.0, ~18.7, ~15.5, ~10.9
Peak Gain (dBi): ~-3.6, ~-2.1, ~-1.7, ~-5.8
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-6.4, ~-11.3, ~-14.7, ~-15.5
VSWR: ~3.0:1, ~1.9:1, ~1.5:1, ~1.5:1
Efficiency (%): ~18.3, ~16.6, ~12.6, ~10.1
Peak Gain (dBi): ~-3.9, ~-2.4, ~-2.2, ~-6.7
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 3 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1.8:1, ~2.6:1, ~2.0:1
Efficiency (%): ~51.1, ~18.3, ~9.4
Peak Gain (dBi): ~4.0, ~0.8, ~-6.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 4 - GPS/GLONASS

Standards: GPS/GLONASS/QZSS/Galileo
Frequency (MHz): 1575.42, 1598-1610
VSWR: <=1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Radiation Pattern: Hemispherical
Voltage Range (V): 1.5 - 3.6
Active Gain (dB): 28 @ 2.7 V
Noise Figure (dB): 1.5 @ 2.7 V
Current Consumption (mA): 9 @ 2.7 V
Saw Filter Type: Pre-Filter
ESD Protection (kV): 2
