2J6A84BGF-RB-SP 5G, GNSS screw mount Antenna Helm IP67 IP69K

Enhance your wireless connectivity with this robust 2-in-1 screw mount antenna, designed for high-performance 5G cellular and GNSS applications. Its dual-cable design ensures dedicated, reliable signal reception for both cellular and satellite navigation technologies. The antenna is ideal for demanding environments such as automotive, industrial IoT, smart grid, fleet management, and remote monitoring, offering stable performance even in harsh conditions. Its compact, heavy-duty construction and anti-rotation mounting make it suitable for a wide range of installations, from vehicles to industrial assets and smart city infrastructure.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1

Installation / Environmental

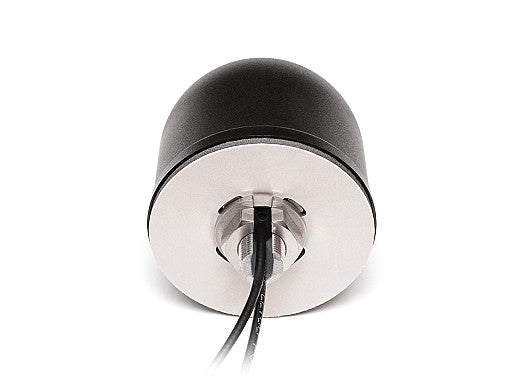

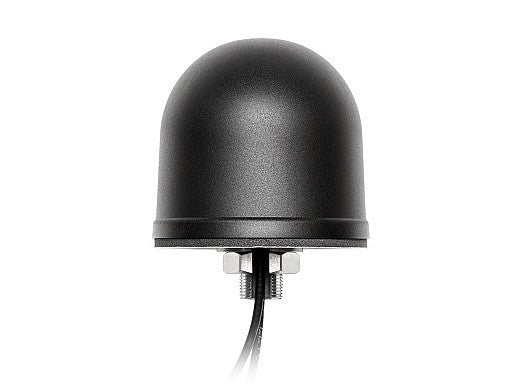

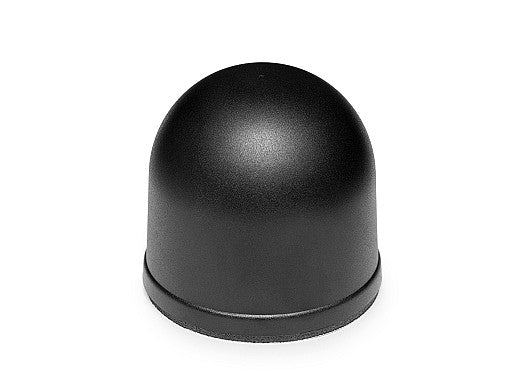

The antenna is built to withstand harsh environmental conditions and holds IP67, IK09, and IP69K certifications. The radome is made of durable ASA material in black, with a Zamak base for added strength. It features a screw mount and a 3mm foam sticker on its underside to prevent rotation and ensure stable installation. It is RoHS compliant and operates within a temperature range of -40 to +85 degrees Celsius. The antenna has customizable cable and connector options and is compact, measuring Ø 69 × 65.5 mm, making it easy to integrate into various environments.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Cellular Technologies: 5G, 4G, 3G, 2G
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-5.3, ~-15.0, ~-12.3, ~-5.8
VSWR: ~4.0:1, ~1.7:1, ~1.8:1, ~3.1:1
Efficiency (%): ~41.0, ~54.7, ~43.9, ~23.4
Peak Gain (dBi): ~-0.9, ~3.1, ~3.7, ~-0.2
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 2 - GPS/GLONASS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency (MHz): 1575.42, 1598-1606
VSWR: <=1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Noise Figure (dB): 1.5 Typ
Current Consumption (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
ESD Protection (kV): 2

Download Datasheet PDF
