2J6B84BGFc 5G, GNSS screw mount Antenna 5-in-1 SMA-M 300cm IP69

This high-efficiency 5-in-1 antenna is engineered for advanced 5G and GNSS connectivity across 617 MHz to 5925 MHz, delivering robust performance and reliability for demanding mobile and navigation applications. Its ultra-wideband MIMO design ensures consistent signal quality and coverage, making it ideal for critical communications in law enforcement, public safety, medical transport, industrial automation, and automotive sectors. The antenna supports multi-user MIMO, providing excellent correlation and no performance nulls, and is suitable for both stationary and mobile installations.

• Optimized for wireless broadband, private networking, cellular data/voice, and precision navigation
• Ideal for vehicle routers, base stations, public safety fleets, and industrial machinery
• Active GNSS element for high-accuracy tracking and mapping
• Durable, low-profile housing with anti-rotation mounting and IP67/IP69 protection

Connections

4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1

Connector & Cable

• Connector Type: SMA-Male (5GNR & GNSS)
• Cable Length: 300cm
• Cable Type: D302 (5GNR), LL100 (GNSS)

Installation / Environmental

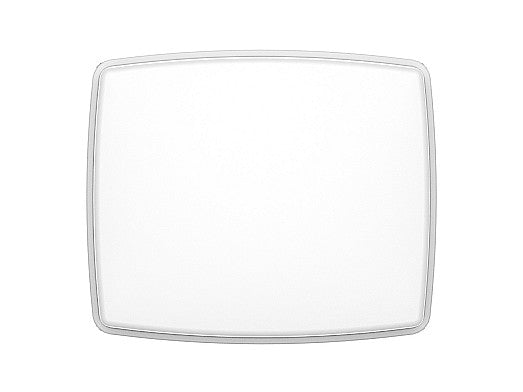

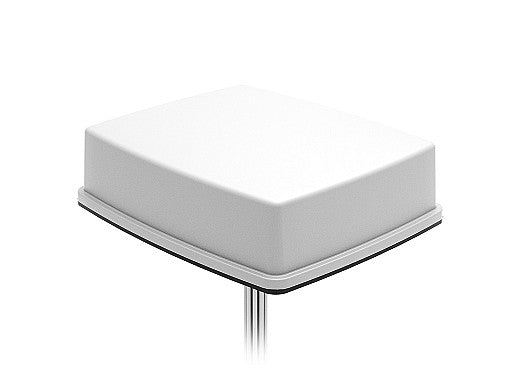

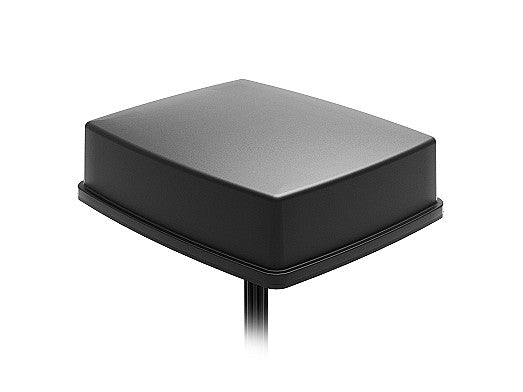

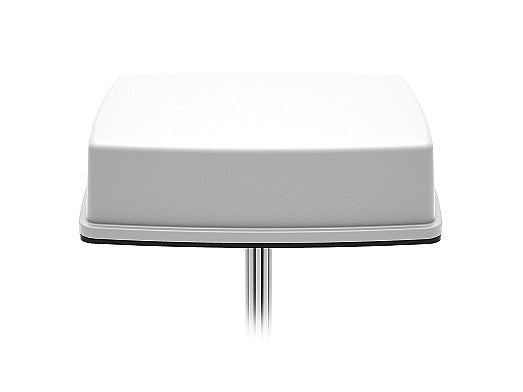

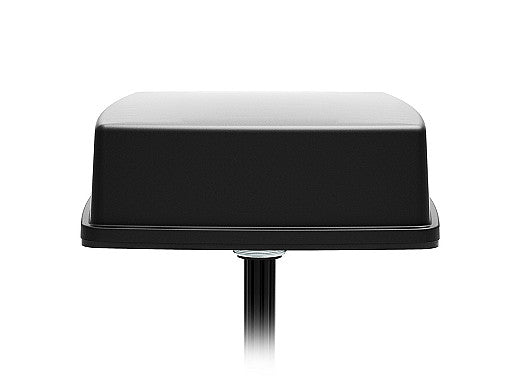

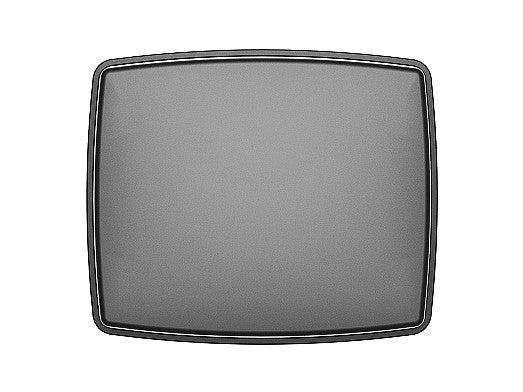

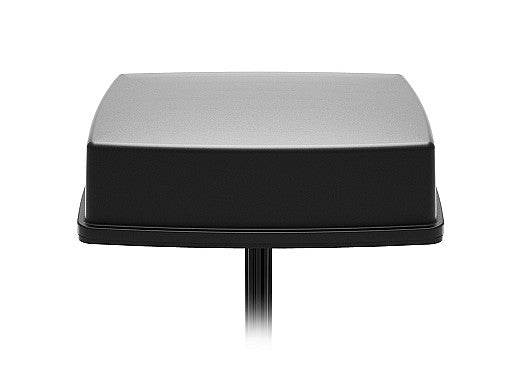

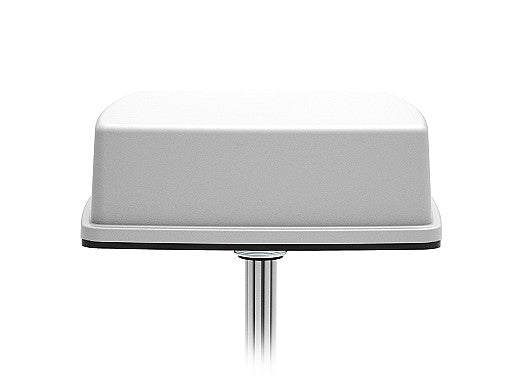

This ground plane independent antenna can be easily installed with the screw mounting that ensures reliable and permanent installations on vehicles or any structures. The low profile housing measures only 53 mm in height and is manufactured with IP67/IP69 rated ASA UV stable material offering durability with the highest level of protection against water and moisture exposure.
2J6B84BGFc connections are standard SMA-Male (5GNR & GNSS) and come with 300cm long low loss D302 (5GNR) and LL100 (GNSS) cables, but can be customized as needed. All the cables feed from bottom of the antenna housing and are tuned for optimal performance. We offer a wide range of alternative connectors and cables to meet any customization needs. Please contact our highly skilled engineers for assistance in antenna selection or customization requirements.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-14.2, ~-15.4, ~-18.3, ~-9.2
VSWR: ~1.6:1, ~1.6:1, ~1.3:1, ~2.1:1
Efficiency (%): ~40.0, ~45.7, ~44.2, ~36.8
Peak Gain (dBi): ~3.0, ~5.0, ~4.6, ~5.0
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-12.8, ~-15.3, ~-18.5, ~-10.8
VSWR: ~1.9:1, ~1.6:1, ~1.4:1, ~1.9:1
Efficiency (%): ~34.1, ~48.2, ~43.7, ~37.8
Peak Gain (dBi): ~1.1, ~4.8, ~5.1, ~5.0
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 3 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-12.7, ~-14.6, ~-19.7, ~-13.5
VSWR: ~1.9:1, ~1.6:1, ~1.3:1, ~1.6:1
Efficiency (%): ~36.4, ~45.6, ~41.2, ~38.7
Peak Gain (dBi): ~3.0, ~4.9, ~4.5, ~4.8
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 4 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-11.8, ~-15.4, ~-20.5, ~-12.8
VSWR: ~1.9:1, ~1.5:1, ~1.3:1, ~1.6:1
Efficiency (%): ~35.8, ~55.4, ~51.0, ~44.6
Peak Gain (dBi): ~2.3, ~5.1, ~5.2, ~5.0
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 5 - GNSS (GPS/GLONASS/QZSS/Galileo)

Standards: GPS/GLONASS/QZSS/Galileo
Frequency: 1575.42, 1598-1606 MHz
Passive Gain (dBi): ~4.5, ~5.0
Impedance (Ohm): 50
Radiation Pattern: Hemispherical
Voltage Range (V): 1.5 - 3.6
Active Gain (dB): 28 @ 2.7 V
Noise Figure (dB): 1.8 @ 2.7 V
Current Consumption (mA): 9 @ 2.7 V
Power Consumption (mW): 24.3 @ 2.7 V
Saw Filter Type: Pre-Filter
Out of Band Rejection (dB): 43
ESD Protection (kV): 6
