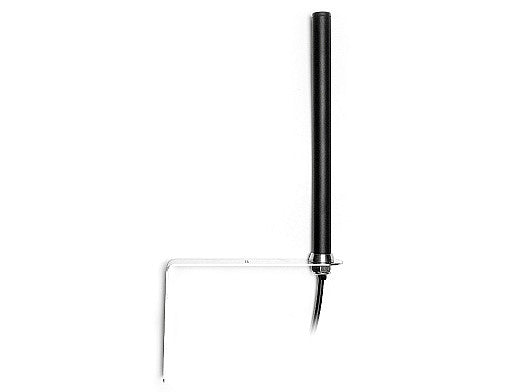

2J2124B-B05H 4G/LTE wall mount Antenna

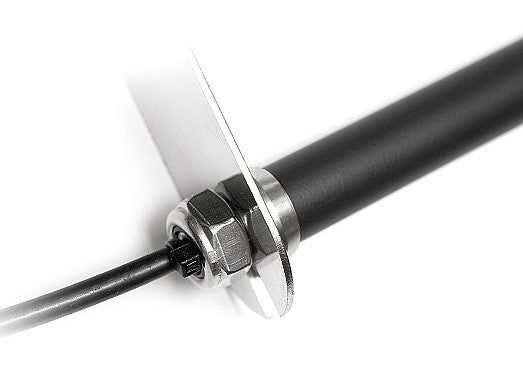

This high-performance wall mount antenna is designed for reliable 4G LTE, 3G, and 2G connectivity across a wide range of frequencies. Its ground plane independent design and waterproof construction make it ideal for demanding environments and outdoor installations. The antenna is suitable for applications such as mobile and cellular networks, IoT, asset tracking, smart cities, and more. It comes with an included mounting bracket for easy installation and supports a wide range of cellular bands for global compatibility.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Wall Mount
Type: Single
Location: External
Cellular Technologies: 4G/LTE

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.4:1, ~1.4:1, ~1.5:1
Efficiency (%): ~54.7, ~56.8, ~48.8
Peak Gain (dBi): ~2.2, ~3.0, ~0.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
