2J4702B Wi-Fi 6E/7, ISM screw mount Antenna SMA-M 300cm IP69K

This low-profile antenna is engineered for next-generation wireless applications, supporting Wi-Fi 6E/7, ISM, Bluetooth, ZigBee, SigFox, and LoRa standards. Its robust design ensures reliable high-speed connectivity, low latency, and optimal efficiency, making it ideal for demanding environments such as IoT devices, automation, consumer electronics, gaming, AR/VR, and industrial applications. The antenna delivers strong signal quality and high bandwidth, even in crowded networks, and is backward compatible for seamless integration with existing devices.

Connections

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: RG174

Installation / Environmental

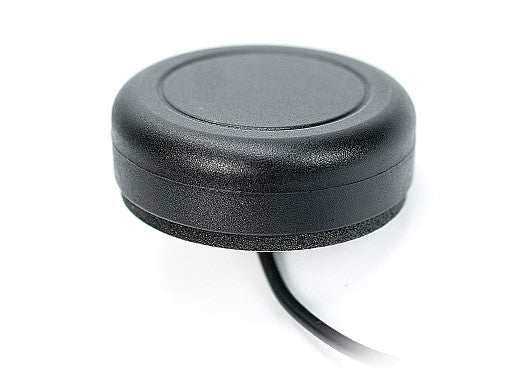

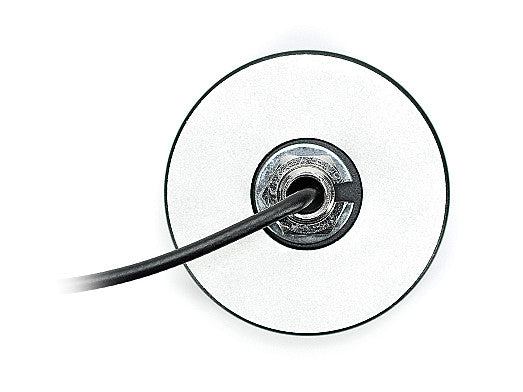

The 2J4702B is designed with a compact dimension of 52 x 17.5 mm and comes with a screw mount. This antenna is manufactured with high-grade IP69K ASA UV stable material that has a strong resistance to corrosive chemicals and/or physical impacts making it extremely durable in temperatures ranging between -40C and +85C. The IP69K rating provides protection against water, chemicals, high pressure and high temperature. This low-profile form factor antenna is ground plane dependent. The 2J4702B is delivered with a standard RF-SMA-Male connector and a standard 300 cm RG174 cable. The antenna comes with a selection of customized extension cable lengths and connector types. This antenna is manufactured without any hazardous materials while maintaining full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Ground Plane Dependent
Location: External
Mounting: Screw Mount
Type: Single

Connection 1 - Wi-Fi 6E/7, ISM

Standards: WiFi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~2.5:1, ~1.5:1, ~2.1:1
Efficiency (%): ~35.8, ~28.4, ~25.2
Peak Gain (dBi): ~3.5, ~2.9, ~2.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
