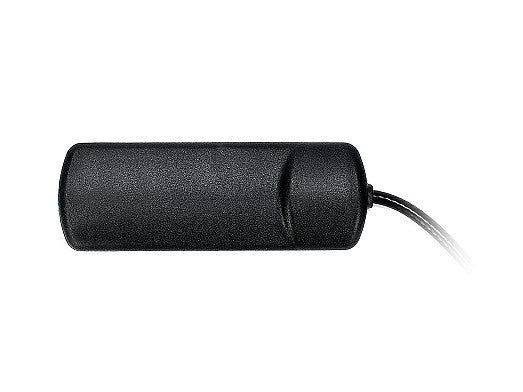

2J5502P Wi-Fi 6E/7, ISM Antenna adhesive Mount Customizable RP-SMA-M 300cm

This low-profile adhesive mount antenna is designed for next-generation Wi-Fi 6E and Wi-Fi 7 applications, as well as ISM band connectivity. Its ground plane independent design ensures reliable performance across a wide range of environments, making it ideal for smart home, IoT, entertainment, and industrial applications. The antenna supports tri-band operation, providing robust wireless coverage and flexibility for devices requiring high-speed, multi-band connectivity.

Connections

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

• Connector Type: RP-SMA-M
• Cable Length: 300cm
• Cable Type: LL100

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Location: External
Type: Single
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee
LPWAN & IoT Communication: SigFox, LoRa
Antenna Technologies: Dipole

Connection 1 - Wi-Fi 6E/7, ISM

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.6:1, ~1.9:1, ~2.6:1
Efficiency (%): ~54.0, ~46.0, ~26.3
Peak Gain (dBi): ~3.3, ~2.0, ~-0.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
