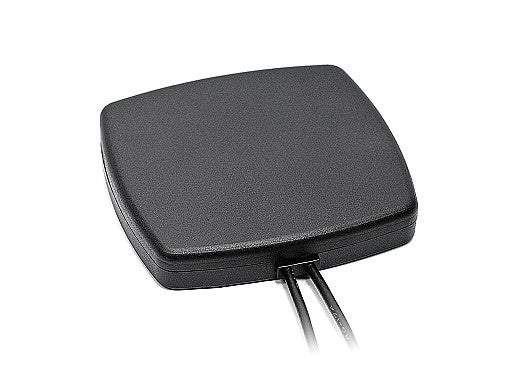

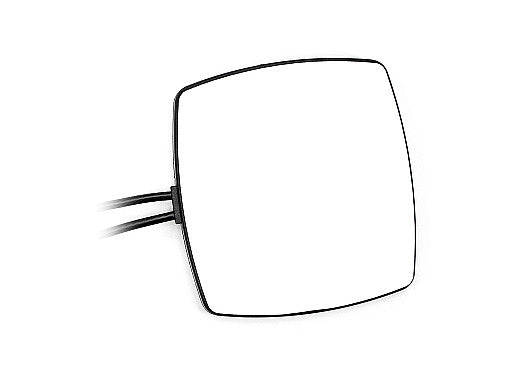

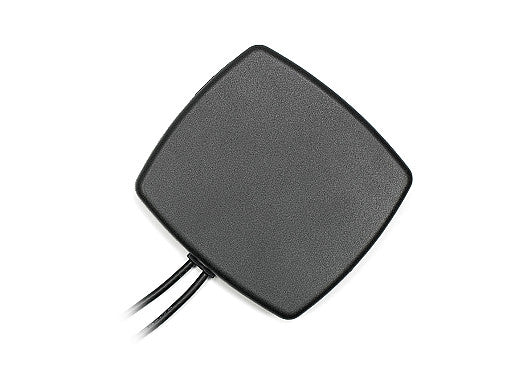

2J6083Pa 5G adhesive mount MIMO Antenna SMA-M 300cm

This ultra wideband antenna delivers high-performance 5G connectivity with full backward compatibility for 4G, 3G, and 2G networks. Its low-profile, compact design and high-quality adhesive mount make it ideal for quick and easy installation on a wide range of non-metal surfaces, especially in outdoor environments. The antenna supports advanced MIMO technology for enhanced signal quality, low latency, and increased data throughput, making it suitable for demanding applications such as terminals, base stations, routers, industrial automation, IoT, and remote monitoring. The omni-directional radiation pattern ensures reliable 360-degree coverage, while the robust ABS/UV-stable housing provides durability for harsh conditions.

Connections

2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: DACAR302

Installation / Environmental

The housing is manufactured from black or white ABS / UV stable material offering exceptional durability at a low cost for maximum protection from extreme outdoor applications. It comes with standard SMA-Male connector and 300 cm long DACAR302 Coaxial cable, a popular choice for automotive applications due to its environmental properties. A wide range of alternative connectors and cables are available for customization. The compact design (80 x 76 x 16 mm), ground plane independence, and high-grade adhesive mounting allow for easy installation on any non-metal surfaces. All products are manufactured without hazardous materials and are fully REACH and RoHS compliant.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Adhesive Mount
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Return Loss (dB): ~-8.6, ~-14.2, ~-8.9, ~-8.5
VSWR: ~2.8:1, ~1.7:1, ~2.4:1, ~2.2:1
Efficiency (%): ~51.4, ~58.4, ~37.2, ~39.7
Peak Gain (dBi): ~3.6, ~4.2, ~1.2, ~1.8
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-8.5, ~-14.4, ~-9.3, ~-9.2
VSWR: ~2.4:1, ~1.7:1, ~2.3:1, ~2.1:1
Efficiency (%): ~50.4, ~63.0, ~38.0, ~38.2
Peak Gain (dBi): ~2.4, ~4.2, ~2.0, ~1.9
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
