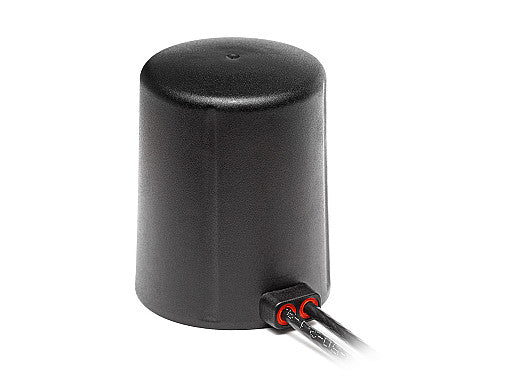

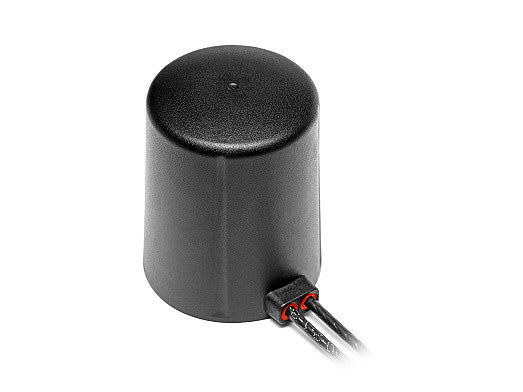

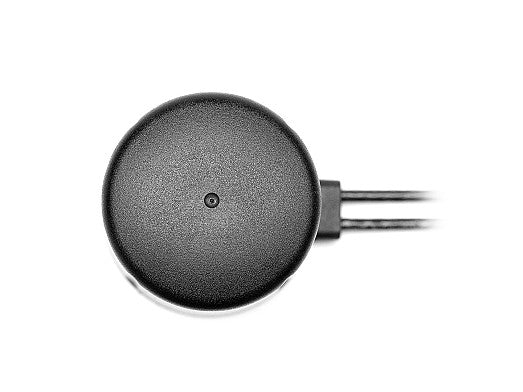

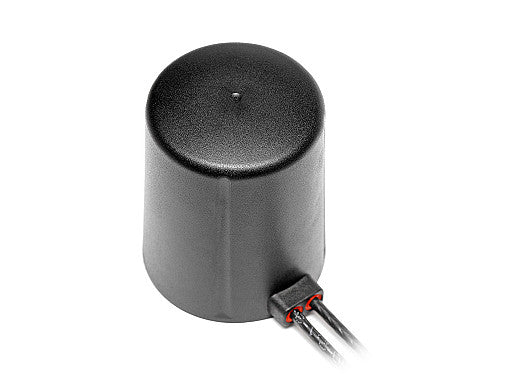

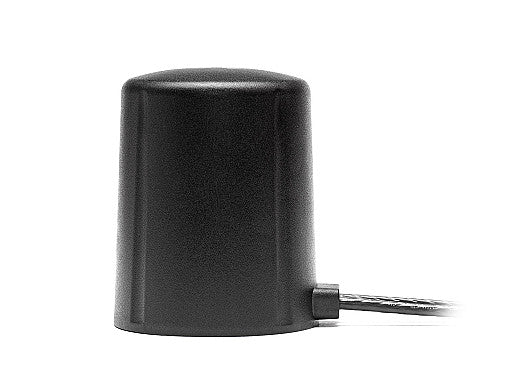

2J7724Ma 4G/LTE magnetic mount Antenna 2-in-1 SMA-M 300cm

This high-performance antenna is designed for reliable 4G LTE, 3G, and 2G connectivity in demanding environments. Its 2-in-1 MIMO configuration ensures enhanced data throughput and stable signal reception, making it ideal for mobile networks, telematics, IoT, and industrial applications. The magnetic mount allows for quick and secure installation on metal surfaces, providing flexibility for a wide range of deployment scenarios. The antenna is built to withstand harsh conditions, featuring IP67, IP69, and IK09 certifications for water, dust, and impact resistance.

Connections

2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: LL100

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
Mounting: Magnetic Mount
Type: Combination

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.7:1, ~1.5:1, ~1.4:1
Efficiency (%): ~39, ~52, ~50
Peak Gain (dBi): ~-0.1, ~2.9, ~3.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.7:1, ~1.5:1, ~1.5:1
Efficiency (%): ~38, ~52, ~53
Peak Gain (dBi): ~-0.1, ~3.1, ~2.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
