2JW0983-C952B 5G swivel Antenna SMA-M

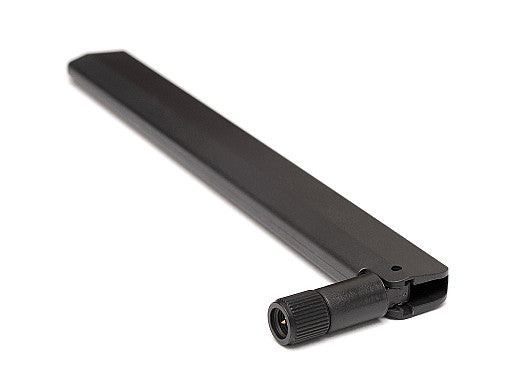

This compact, high-performance antenna is designed for global coverage across 5G NR, 4G LTE, 3G, and 2G/CDMA cellular spectrums. Its innovative hinged swivel design allows flexible positioning—straight, right, or 45-degree angles—enabling optimal signal strength and minimizing interference with nearby antennas. The omni-directional radiation pattern ensures 360-degree signal quality, making it ideal for terminals, base stations, routers, IoT devices, smart home/office applications, vending machines, and more. The antenna is ground plane independent, offering versatile installation options with minimal restrictions. The housing is made from ASA UV-protective material, ensuring durability in outdoor environments and resistance to extreme temperatures.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: SMA-M

Installation / Environmental

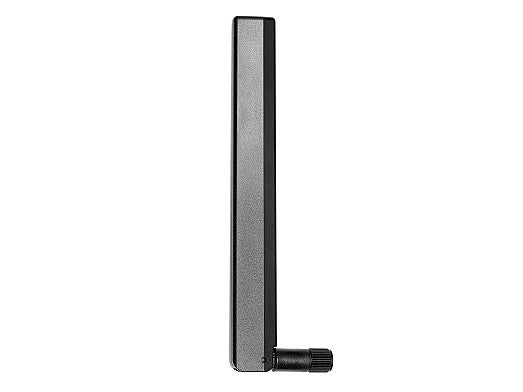

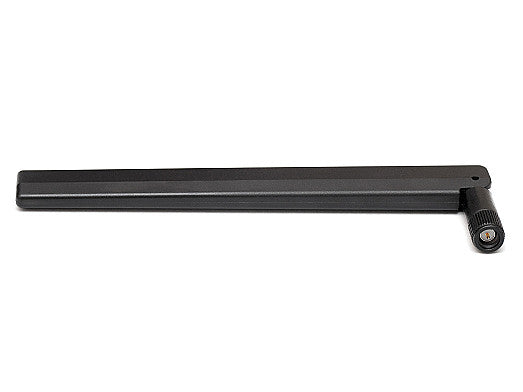

The antenna housing is manufactured from ASA UV protective material, allowing it to withstand extreme temperatures ranging between -40C to +85C and making it ideal for outdoor applications. The design dimensions are 170 x 18 x 10 mm (straight angle), 145 x 42 x 10 mm (right angle) and 137 x 112 x 10 mm (45-degree angle). This antenna is ground plane independent allowing for a wide range of installation options with minimal restrictions. 2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Cellular Technologies: 5G, 4G, 3G, 2G
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G and 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-9.3, ~-9.8, ~-6.9, ~-13.7
VSWR: ~2.4:1, ~2.2:1, ~3.1:1, ~1.6:1
Efficiency (%): ~45.8, ~58.6, ~41.8, ~46.9
Peak Gain (dBi): ~2.2, ~2.6, ~2.0, ~4.2
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
