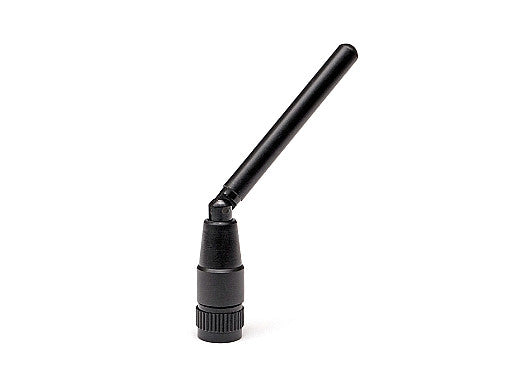

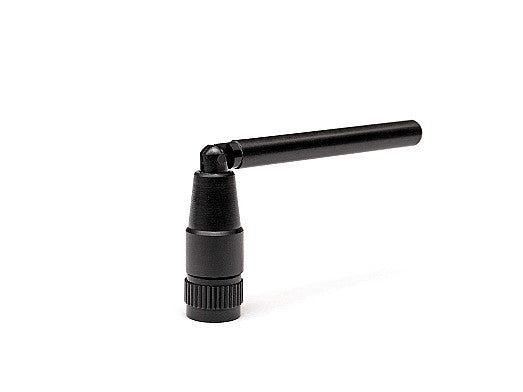

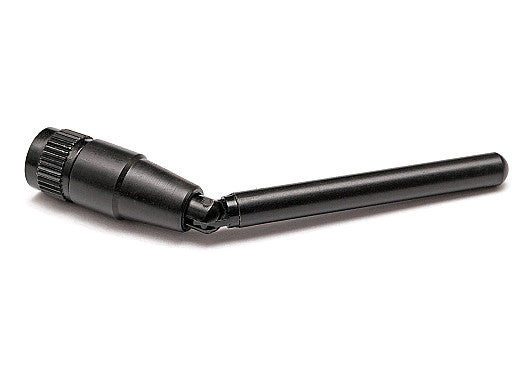

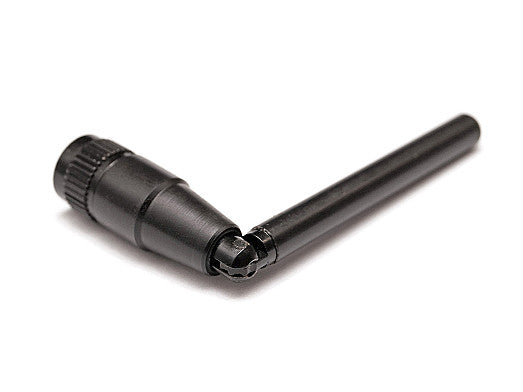

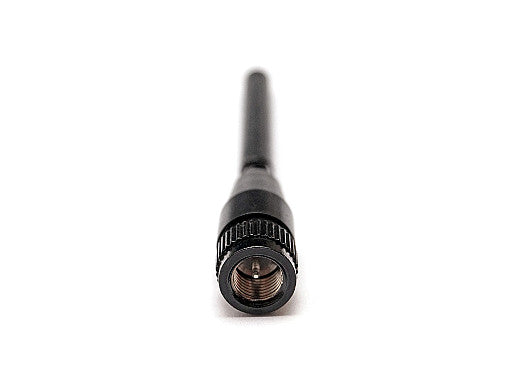

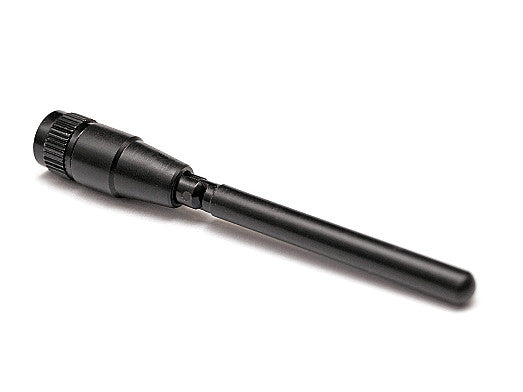

2JW1024 4G/LTE connector mount Antenna

This low-profile, high-efficiency antenna is designed for worldwide 4G LTE connectivity with full 2G and 3G fallback compatibility. Its wideband coverage ensures stable and reliable performance across all major cellular bands, making it ideal for use in access points, routers, small base stations, femto cells, repeaters, boosters, fleet management, and telematics devices. The antenna features a 360-degree swivel and a hinged connector for flexible orientation and easy installation, especially in multi-antenna setups.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Cellular Technologies: 4G/LTE
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - CELLULAR/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~3.1:1, ~1.7:1, ~1.5:1
Efficiency (%): ~58, ~67, ~74
Peak Gain (dBi): ~0.1, ~2.9, ~4.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 10
