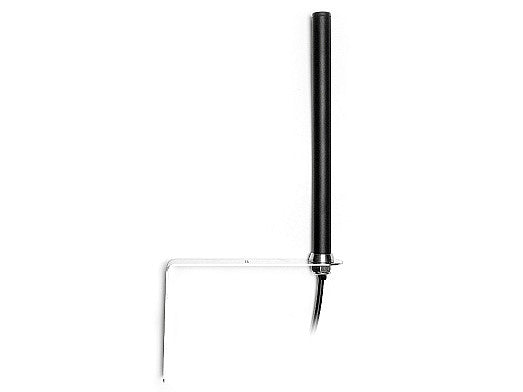

2J2183B-B05H 5G wall mount Antenna SMA-M 300cm

This ultra wideband antenna is designed for high-performance 5G, 4G, 3G, and 2G cellular connectivity in demanding outdoor environments. Its robust IP67-rated housing and stainless steel bracket ensure reliable operation in harsh weather conditions, making it ideal for telecommunications, building management, IoT, and industrial applications. The antenna supports sub-6 GHz cellular bands, offering backward compatibility with existing networks and delivering stable, high-gain performance for consistent data throughput.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: LL195

Installation / Environmental

2J2183B-B05H has a compact and slim stick-shaped design that measures only 325 × 36 × 155 (220 × Ø 16) mm and is protected with an IP67 certified ASA housing that offers excellent durability in temperatures ranging from -40C (-40F) to +85C (+185F). It features a high performance, low loss cable with an anti-snag cable for a seamless and durable installation. The antenna comes with a stainless steel bracket, brass antenna base, 300 cm long low loss L1195 cable and SMA-Male connector for a secure and durable outdoor installation. For indoor antenna solutions, please see product 2J2183K-B07H with plastic bracket wall mount. Connectors and cables can be customized to any specific requirements and our highly experienced engineers are available to assist with antenna selections that meet all our customer usage needs. Please contact us for more information. All our products are designed and manufactured without hazardous materials while maintaining full RoHS compliance.

Technical Specifications

Operating Temperature: -40°C to +85°C
Cellular Technologies: 5G, 4G, 3G, 2G
Location: External
Mounting: Wall Mount
Type: Single

Connection 1 - 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G and 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-8.3, ~-13.0, ~-14.1, ~-11.9
VSWR: ~2.4:1, ~1.8:1, ~1.7:1, ~1.9:1
Efficiency (%): ~66.6, ~62.6, ~40.6, ~32.4
Peak Gain (dBi): ~3.9, ~4.0, ~3.9, ~3.9
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35
